PA09-27 - Apex Microtechnology

Description: Operational Amplifiers - Op Amps Linear OpAmp, 80V, 5A 150 MHz 200V/μs TO-3-8 -55C to +125c

Download PA09-27 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PA09-27 model

Email notifications will be applied after download.

Send part feedback

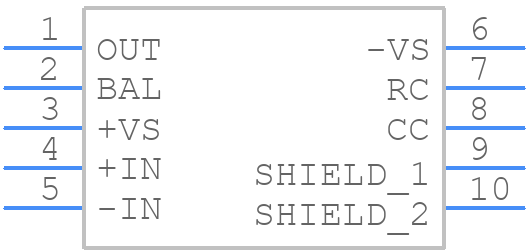

Symbol

PA09-27 - Apex Microtechnology - PCB symbol

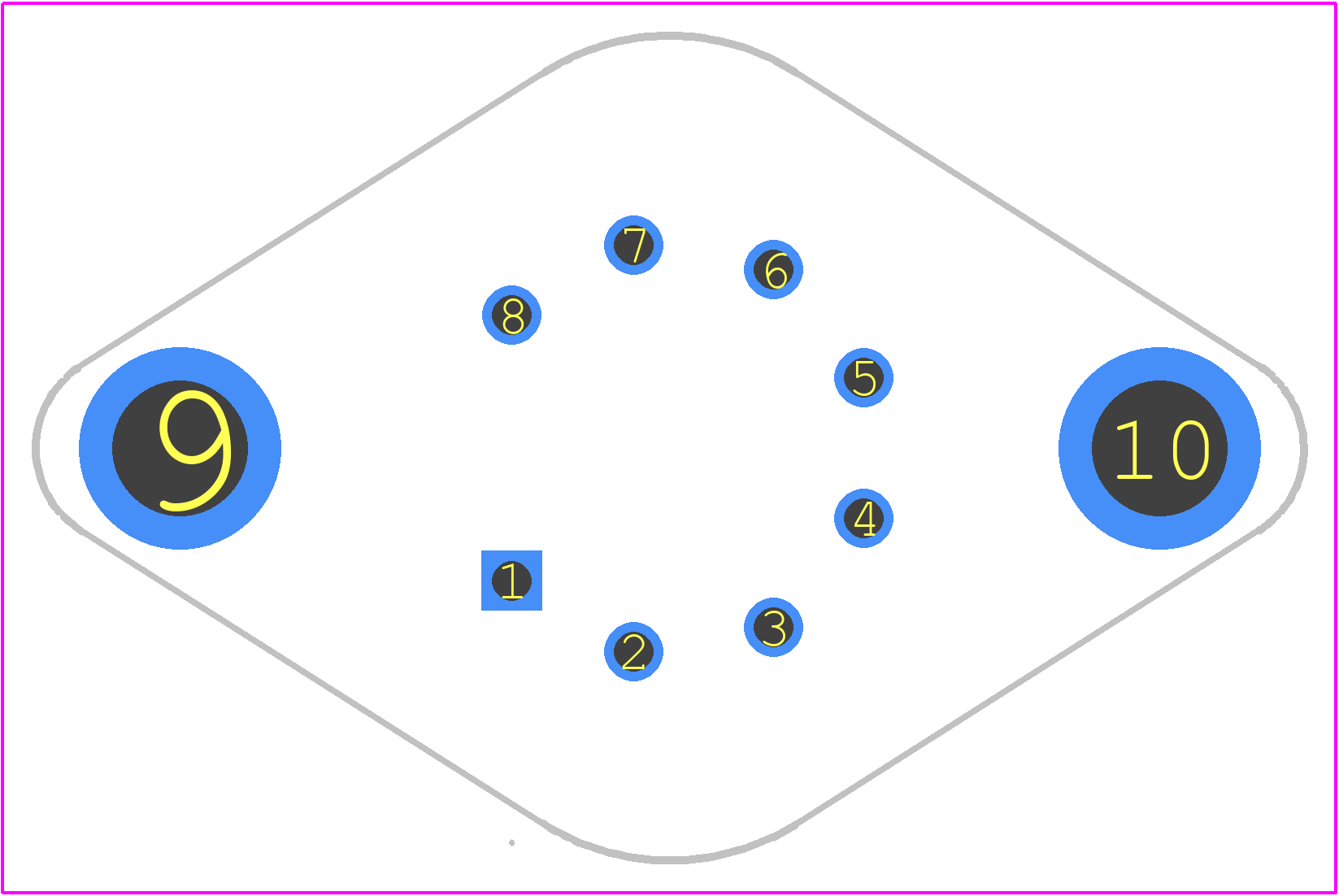

PCB Footprints

PA09-27 - Apex Microtechnology PCB footprint - Other - Other - 8-pin TO-3_2025

3D Models

PA09-27 - Apex Microtechnology - 3D model - Other - 8-pin TO-3_2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for PA09-27
Part Number PA09-27
Manufacturer Apex Microtechnology
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 8-pin TO-3_2025
Released Date Jun 13, 2025
Last Modified Date Jun 13, 2025 7:48 AM UTC
