PA09A - Apex Microtechnology

Description: Operational Amplifiers - Op Amps Linear OpAmp, 80V 5A A Grade

Download PA09A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

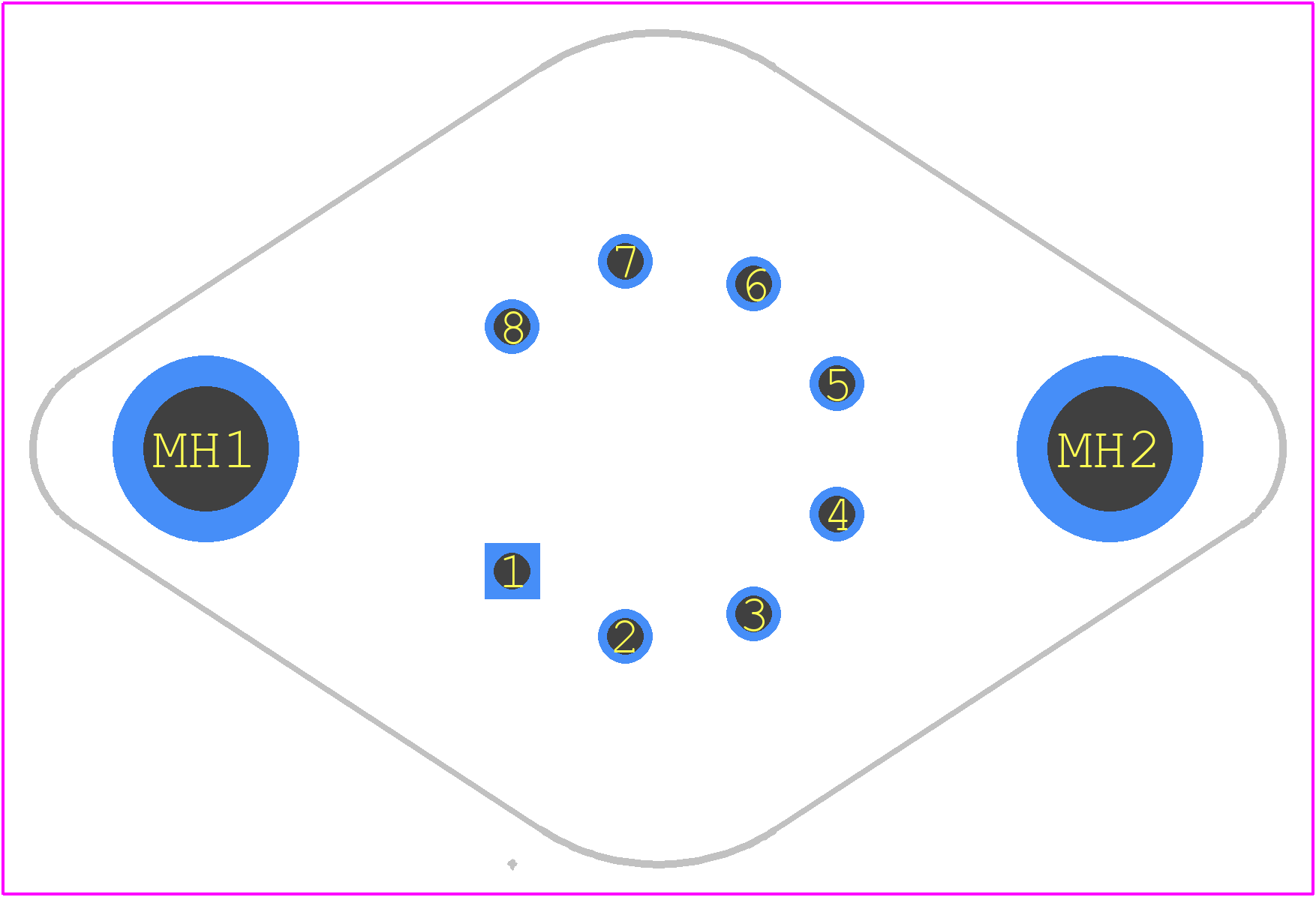

PA09A - Apex Microtechnology PCB footprint - Other - Other - CE
click to zoom
3D Models
PA09A - Apex Microtechnology  - 3D model - Other - CE
click to zoom

PA09A Details

  • Manufacturer Part Number:

    PA09A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-204AA

  • Pin Count:

    2

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    4.8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00002 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Nom:

    104 dB

  • Frequency Compensation:

    YES (AVCL>=1000)

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    O-MBFM-P8

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Neg Supply Voltage Limit-Max:

    -40 V

  • Neg Supply Voltage-Nom (Vsup):

    -35 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    CAN8/9,.5FL

  • Package Shape:

    ROUND

  • Package Style:

    FLANGE MOUNT

  • Power:

    YES

  • Qualification Status:

    Not Qualified

  • Slew Rate-Nom:

    220 V/us

  • Supply Current-Max:

    85 mA

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    35 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    BOTTOM

  • Unity Gain BW-Nom:

    150000

  • Voltage Gain-Min:

    10000

PA09A Frequently Asked Questions (FAQs)

  • A good PCB layout for the PA09A should minimize parasitic inductance and capacitance. Use a ground plane, keep signal traces short and wide, and avoid vias under the device. Apex Microtechnology provides a recommended layout in their application notes.
  • To ensure stability, ensure the output is properly terminated, and the input is properly biased. Use a low-pass filter at the output to prevent high-frequency oscillations. Apex recommends a 10nF capacitor in parallel with a 10Ω resistor at the output.
  • The PA09A's SOA is limited by the maximum voltage, current, and power dissipation. Ensure the device operates within the recommended voltage range (±15V to ±30V) and current limit (±1.5A). The maximum power dissipation is 20W.
  • Use voltage regulators and current limiters to protect the PA09A from overvoltage and overcurrent. Apex recommends using a voltage regulator with a ±5% tolerance and a current limiter with a 1.5A limit.
  • The PA09A has a thermal pad on the bottom of the package. Ensure good thermal contact with a heat sink or thermal interface material. Apex recommends a heat sink with a thermal resistance of ≤1°C/W.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
