Apex recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
Apex recommends using a resistive divider network to set the bias voltage, and a voltage regulator to ensure a stable supply voltage. The recommended bias voltage is 3.3V, and the quiescent current should be set to 100mA.
The maximum SOA for the PA15FL is 30V, 3A, and 10W. Operating the device beyond these limits can cause permanent damage or reduce its lifespan.
Apex recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Additionally, handling the device with an ESD wrist strap or mat, and storing it in an anti-static bag can prevent ESD damage.
Apex recommends storing the PA15FL in a dry, cool place, away from direct sunlight and moisture. The device should be handled with clean, dry gloves, and should not be exposed to mechanical stress or vibration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA15FL Overview

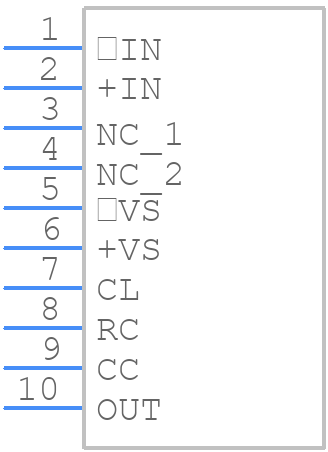

Use the download button to access the PA15FL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA15F,
or try a keyword search, such as Operational Amplifiers
