PA162DK - Apex Microtechnology

Description: The PA162 is a quad power operational amplifier featuring a quad output of 1.5A continuous current on 5V to 40V single supplies. The product design for the PA162 utilizes both monolithic and hybrid technologies by placing two dual amplifier ICs in a surface mount 20-pin PSOP, JEDEC MO-166-AB package. The result is a cost effective solution for applications requiring multiple amplifiers per board or bridge mode configurations. Four independent amplifiers coupled with low quiescent current and very low THD ma

Download PA162DK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

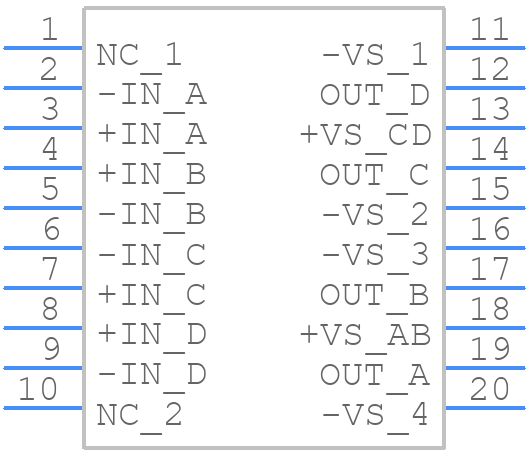

PA162DK - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

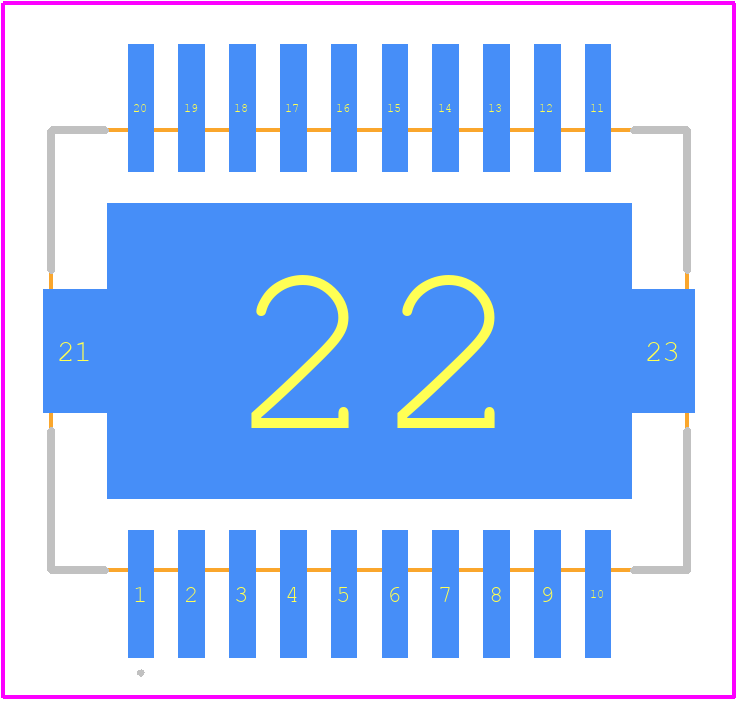

PA162DK - Apex Microtechnology PCB footprint - Other - Other - PA162DK
click to zoom
3D Models
PA162DK - Apex Microtechnology - 3D model - Other - PA162DK
click to zoom

PA162DK Details

  • Manufacturer Part Number:

    PA162DK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    4.9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    15.9 mm

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    3.4 mm

  • Slew Rate-Nom:

    1.4 V/us

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    30 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    900

  • Width:

    11 mm

PA162DK Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip transmission line design for the input and output signals. A detailed layout guide is available upon request.
  • Apex Microtechnology recommends using a voltage clamp or a transient voltage suppressor (TVS) to protect the PA162DK from overvoltage and ESD damage. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
  • Apex Microtechnology recommends using a heat sink with a thermal interface material (TIM) to maintain a junction temperature below 150°C. A thermal design guide is available upon request.
  • Yes, the PA162DK can be used in a push-pull configuration to achieve higher output power and improved linearity. However, Apex Microtechnology recommends consulting with their application engineers to ensure proper design and implementation.
  • Apex Microtechnology recommends using a conjugate match design for the input and output matching networks to achieve optimal performance. A detailed application note is available upon request.
