PA164PQ - Apex Microtechnology

Description: The PA164 is a high density power amplifier IC that utilizes MOSFET technology and a proprietary silicon design to deliver new benchmarks in performance and thermal management for power amplifier ICs. With a body of just 20mm x 20mm, this device is capable of providing 1A output current continuously, and up to 4A PEAK on voltage supplies up to 200V. The PA164 uses separate supplies for the amplifier core and the output stage to help optimize overall power dissipation capabilities of 28W of internally genera

Download PA164PQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PA164PQ - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

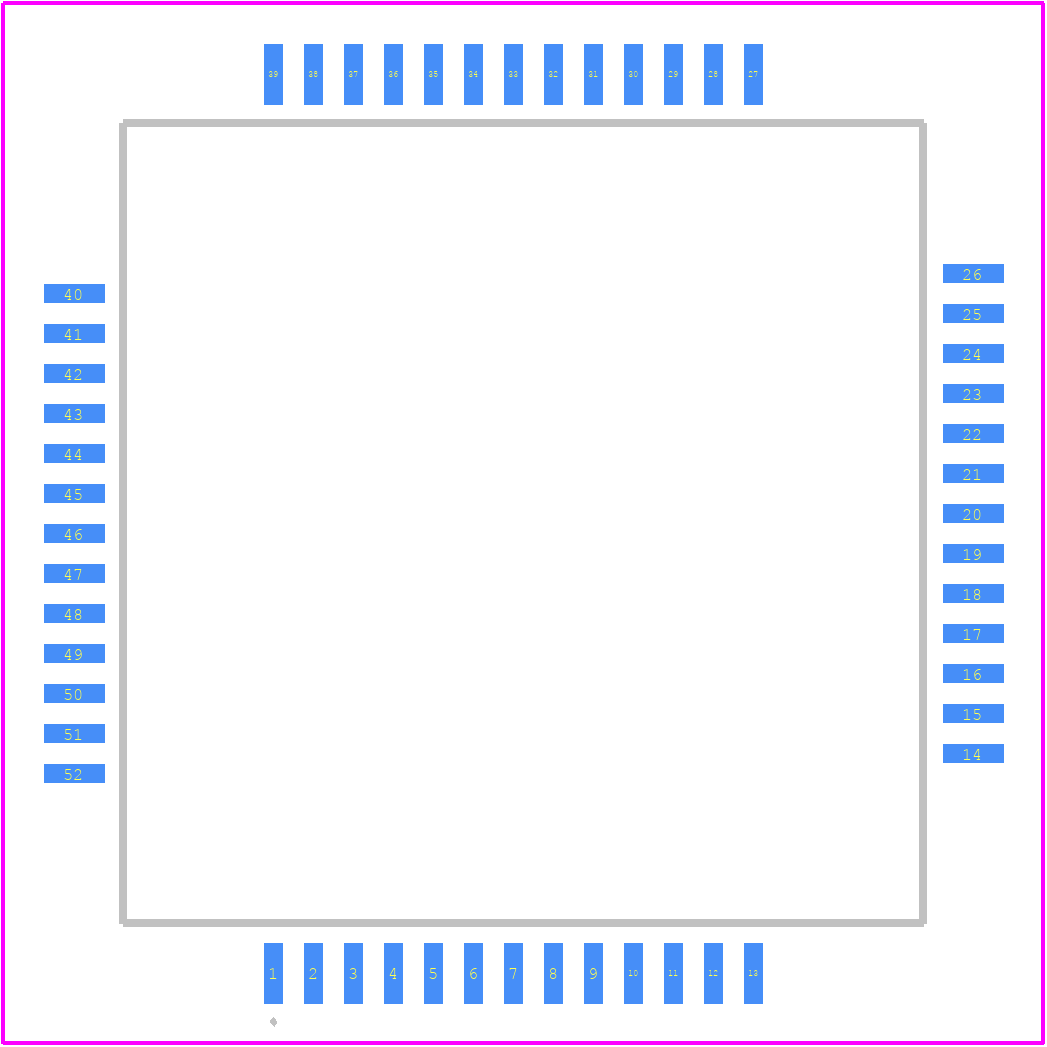

PA164PQ - Apex Microtechnology PCB footprint - Other - Other - PQ
click to zoom
3D Models
PA164PQ - Apex Microtechnology - 3D model - Other - PQ
click to zoom

PA164PQ Details

  • Manufacturer Part Number:

    PA164PQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-09-20

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    97 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Input Offset Current-Max (IIO):

    0.0002 µA

  • Input Offset Voltage-Max:

    20000 µV

  • JESD-30 Code:

    S-PQFP-G52

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    HQFP52,.86SQ,40

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Seated Height-Max:

    3.127 mm

  • Slew Rate-Nom:

    36 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    205 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    10300

  • Width:

    20 mm

PA164PQ Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and a minimum of 2 oz copper thickness for optimal thermal performance. The input and output traces should be kept short and wide to minimize inductance and resistance.
  • Apex Microtechnology recommends using a voltage regulator or a voltage limiter to prevent overvoltage. Additionally, a current limiter or a fuse can be used to prevent overcurrent. It's also important to follow proper PCB layout and thermal management practices to prevent overheating.
  • The PA164PQ is rated for operation from -40°C to 125°C, but Apex Microtechnology recommends derating the output power above 85°C to ensure reliable operation.
  • Yes, the PA164PQ can be used in switching power supply applications, but Apex Microtechnology recommends using a snubber circuit to reduce voltage spikes and ringing. Additionally, the PA164PQ should be operated within its recommended frequency range to ensure stable operation.
  • Apex Microtechnology recommends checking the PCB layout and component placement for any issues, ensuring that the input and output capacitors are properly selected, and verifying that the operating frequency is within the recommended range. Additionally, checking the voltage and current waveforms can help identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA164PQ Overview

Use the download button to access the PA164PQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA164, or try a keyword search, such as Operational Amplifiers
