PA168A - Apex Microtechnology

Description: The PA168 is a high voltage MOSFET operational amplifier with a monolithic amplifier core designed for high density power applications with high output currents or voltages. The device is designed for output voltages up to 205V, with the PA168 providing 4A (8A A grade) of continuous current.

Download PA168A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PA168A model

Email notifications will be applied after download.

Send part feedback

Symbol

PA168A - Apex Microtechnology - PCB symbol

PCB Footprints

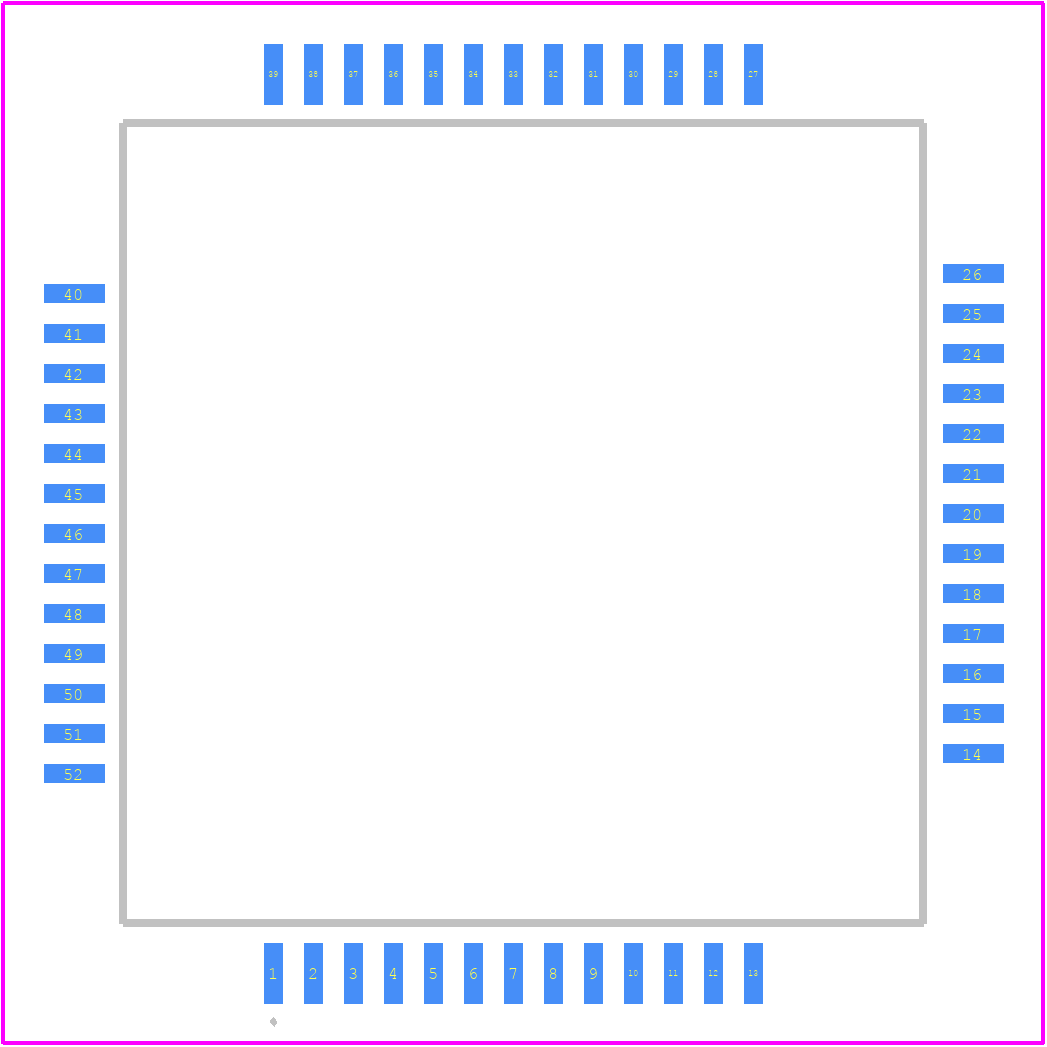

PA168A - Apex Microtechnology PCB footprint - Other - Other - PA165PQ

3D Models

PA168A - Apex Microtechnology - 3D model - Other - PA165PQ

Datasheet Download Datasheet
Stock & Prices Price & Stock for PA168A
Part Number PA168A
Manufacturer Apex Microtechnology
Pin Count 52
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PA165PQ
Released Date Nov 17, 2020
Last Modified Date Aug 5, 2026 4:17 PM UTC
Pinout / Pin List Click Here (Member Only)

PA168A Details

Manufacturer Part Number:
PA168A
Manufacturer:
Apex Microtechnology Inc
