PA2512FKF7T0R004E - Yageo Group

Description: Current Sense Resistors - SMD 4 mOhms 3 Watts 1 % 100 ppm/C AEC-Q200

Download PA2512FKF7T0R004E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PA2512FKF7T0R004E - Yageo Group - PCB symbol
click to zoom
PCB Footprints

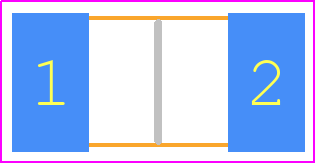

PA2512FKF7T0R004E - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - 2512 / 6332
click to zoom
3D Models
PA2512FKF7T0R004E - Yageo Group - 3D model - Resistor Chip - 2512 / 6332
click to zoom

PA2512FKF7T0R004E Details

  • Manufacturer Part Number:

    PA2512FKF7T0R004E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7.25

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.63 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Rated Power Dissipation (P):

    3 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.004 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.1095 V

PA2512FKF7T0R004E Frequently Asked Questions (FAQs)

  • The recommended land pattern for PA2512FKF7T0R004E is a rectangular pad with a size of 2.5mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • PA2512FKF7T0R004E has a maximum operating temperature of 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and ensure reliable operation.
  • Yes, PA2512FKF7T0R004E is compatible with lead-free soldering processes. YAGEO Corporation ensures that their components meet the requirements of the RoHS directive and are suitable for use in lead-free soldering applications.
  • PA2512FKF7T0R004E has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours without requiring special handling or storage.
  • PA2512FKF7T0R004E is designed to operate in environments with relative humidity up to 85%. However, it's essential to ensure that the component is properly sealed and protected from moisture ingress to prevent degradation or failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA2512FKF7T0R004E Overview

Use the download button to access the PA2512FKF7T0R004E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA251, or try a keyword search, such as Metal Strip Resistor
