Part Image

PA2512FKF7W0U75E - Yageo Group

Description: Current Sense Resistors - SMD 750uOhms 2W 100PPM/C 2512 AEC-Q200

Download PA2512FKF7W0U75E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PA2512FKF7W0U75E - Yageo Group - PCB symbol
click to zoom
PCB Footprints

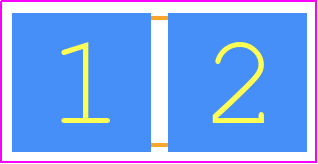

PA2512FKF7W0U75E - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - PA2512_2024
click to zoom
3D Models
PA2512FKF7W0U75E - Yageo Group - 3D model - Resistor Chip - PA2512_2024
click to zoom

PA2512FKF7W0U75E Details

  • Manufacturer Part Number:

    PA2512FKF7W0U75E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7.25

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.63 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.00075 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.0387 V

PA2512FKF7W0U75E Frequently Asked Questions (FAQs)

  • The recommended land pattern for PA2512FKF7W0U75E is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
  • PA2512FKF7W0U75E has a maximum operating temperature of 150°C, making it suitable for high-temperature applications. However, it's essential to consider the derating of the component's characteristics at elevated temperatures.
  • Yes, PA2512FKF7W0U75E is compatible with lead-free soldering processes, such as SAC305 (Sn-Ag-Cu) or other lead-free solder alloys. However, it's crucial to follow the recommended soldering profile to ensure reliable assembly.
  • PA2512FKF7W0U75E has a moisture sensitivity level (MSL) of 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% RH before soldering. Proper storage and handling are essential to prevent moisture absorption.
  • While PA2512FKF7W0U75E is designed to operate in a wide range of environmental conditions, it's not recommended for applications with extremely high humidity or moisture. The component may be susceptible to moisture-related failures or degradation in such environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PA2512FKF7W0U75E Overview

Use the download button to access the PA2512FKF7W0U75E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PA251, or try a keyword search, such as Metal Strip Resistor
