Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
Ensure proper heat sinking, keep the device within the recommended operating temperature range, and avoid exceeding the maximum junction temperature (TJ) of 150°C. Monitor the device's temperature and adjust the system design accordingly.
Apex Microtechnology recommends using a pi-filter (C-L-C) or a T-filter (L-C-L) at the input and output stages to reduce electromagnetic interference (EMI). The filter component values should be chosen based on the specific application and frequency range.
Use voltage and current limiting circuits, such as zener diodes, TVS diodes, or fuses, to protect the device from overvoltage and overcurrent conditions. Ensure that the protection circuits are designed to respond quickly to fault conditions.
Apex Microtechnology recommends a slow startup sequence to prevent inrush currents and ensure reliable operation. The recommended sequence is: 1) Apply VCC, 2) Apply input signal, and 3) Apply output load. For shutdown, reverse the sequence.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA61M Overview

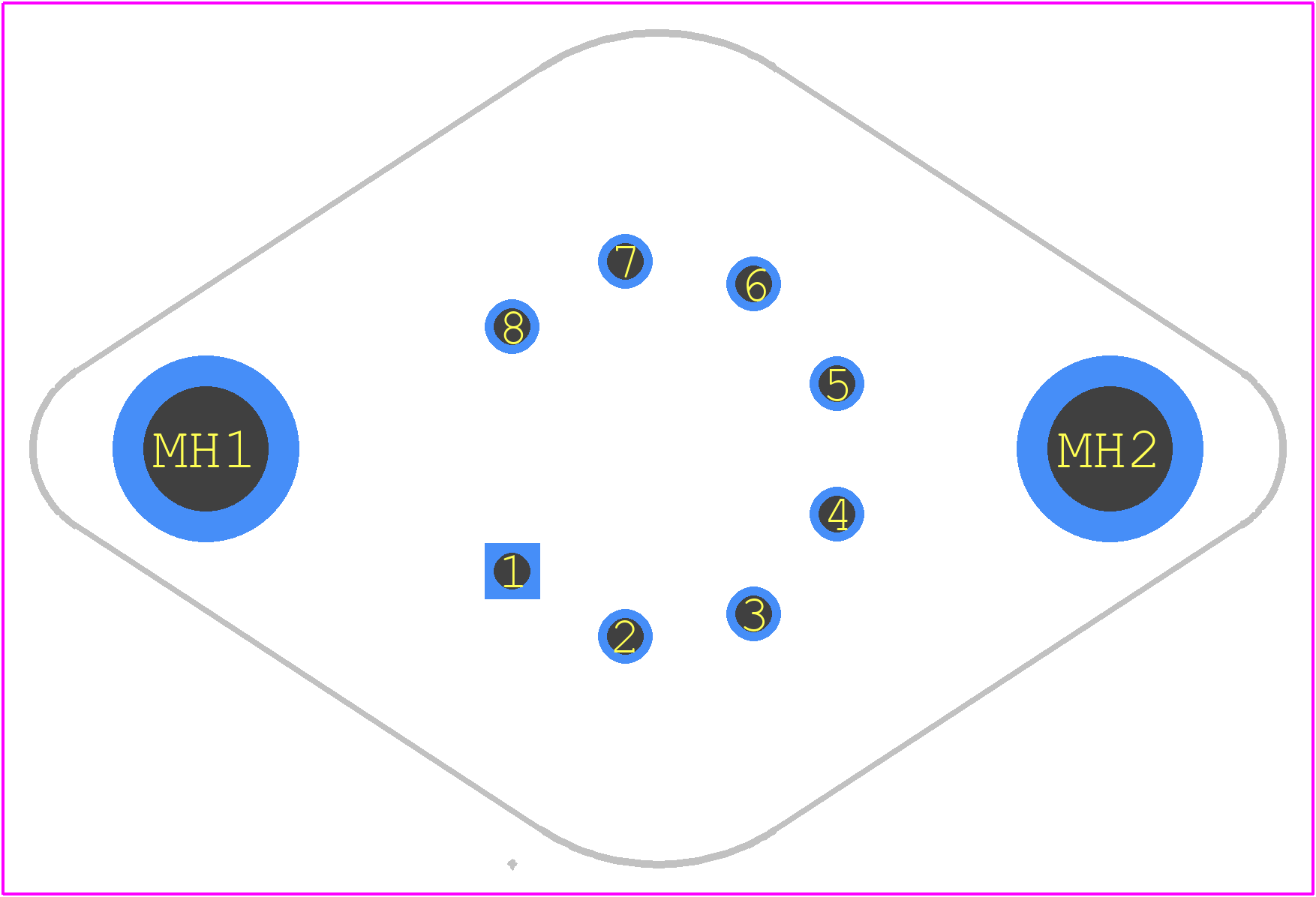

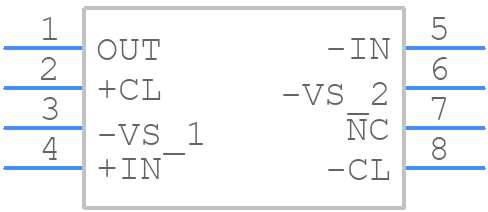

Use the download button to access the PA61M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Operational Amplifiers
