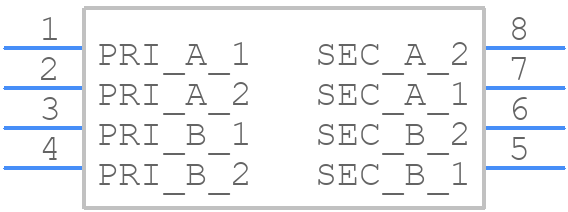

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PA6381-ALB
- Part Number PA6381-ALB
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - PA6381-ALB-2
- Released Date Nov 23, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PA6381-ALB Details
-
Manufacturer Part Number:
PA6381-ALB
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
0
-
Additional Feature:
LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO
-
Height:
9.02 mm
-
Input Voltage-Nom:
5 V
-
Length:
10.92 mm
-
Mounting Feature:
SURFACE MOUNT
PA6381-ALB Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended PCB land pattern in their application notes or on their website. It's essential to follow this pattern to ensure proper soldering and thermal management.
-
Thermal derating is critical for inductors. Coilcraft provides thermal derating curves in their datasheet. Engineers should consider the operating temperature, current, and other environmental factors to ensure the inductor operates within its specified temperature range.
-
The SRF is typically not specified in the datasheet, but it can be obtained from Coilcraft's application notes or by contacting their technical support. The SRF affects the inductor's behavior at high frequencies, and engineers should consider it when designing filters, resonant circuits, or other high-frequency applications.
-
Coilcraft's PA6381-ALB is a surface-mount inductor, and its mechanical robustness may be affected by high-vibration or high-shock environments. Engineers should consult Coilcraft's reliability data and perform additional testing to ensure the inductor meets their specific requirements.
-
Engineers should consider factors such as inductance value, current rating, DC resistance, and physical size when selecting an inductor. Coilcraft provides a range of inductors with different characteristics, and their technical support can help with the selection process.
Trust Checks
Community Provided
System Verified
Community Approved
PA6381-ALB Overview
Use the download button to access the PA6381-ALB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PA638,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
