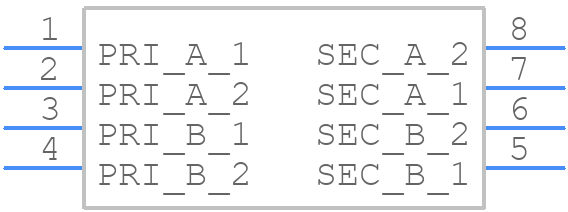

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PA6383-ALB
- Part Number PA6383-ALB
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - PA6383-ALB-1
- Released Date Dec 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PA6383-ALB Details
-
Manufacturer Part Number:
PA6383-ALB
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
0
-
Additional Feature:
LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO
-
Height:
9.02 mm
-
Input Voltage-Nom:
5 V
-
Length:
10.92 mm
-
Mounting Feature:
SURFACE MOUNT
PA6383-ALB Frequently Asked Questions (FAQs)
-
Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and reliability of the inductor.
-
Coilcraft recommends following standard reflow soldering procedures, with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's also important to ensure that the inductor is properly secured to the PCB to prevent movement during the reflow process.
-
The maximum current rating for the PA6383-ALB inductor is not explicitly stated in the datasheet, but it can be calculated based on the inductor's resistance and inductance values. Coilcraft provides a current rating calculator on their website to help engineers determine the maximum current rating for their specific application.
-
Yes, the PA6383-ALB inductor is designed for high-frequency applications, with a self-resonant frequency (SRF) of 100 MHz. However, it's essential to consider the inductor's impedance and loss characteristics at the specific frequency of operation to ensure optimal performance.
-
The PA6383-ALB inductor is rated for operation up to 125°C (257°F), but it's essential to consider the derating of the inductor's performance and reliability at elevated temperatures. Coilcraft provides temperature derating curves in their application notes to help engineers determine the inductor's performance at high temperatures.
Trust Checks
Community Provided
System Verified
Community Approved
PA6383-ALB Overview
Use the download button to access the PA6383-ALB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PA638,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
