PA93EE - Apex Microtechnology

Description: 400V, 8A Power Amplifier in PowerSIP with Low Standby Current, Low quiescent current – 10mA, High output current – 8A continuous, 14A PEAK, Programmable current limit, Package EE 12-Pin SIP w/ formed leads

Download PA93EE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

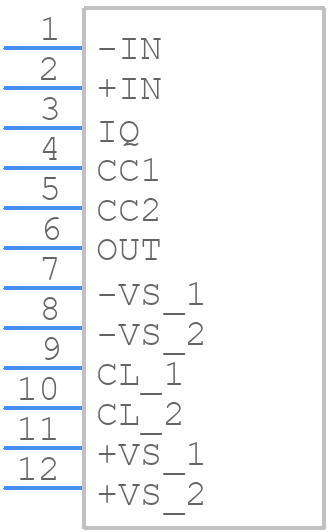

PA93EE - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

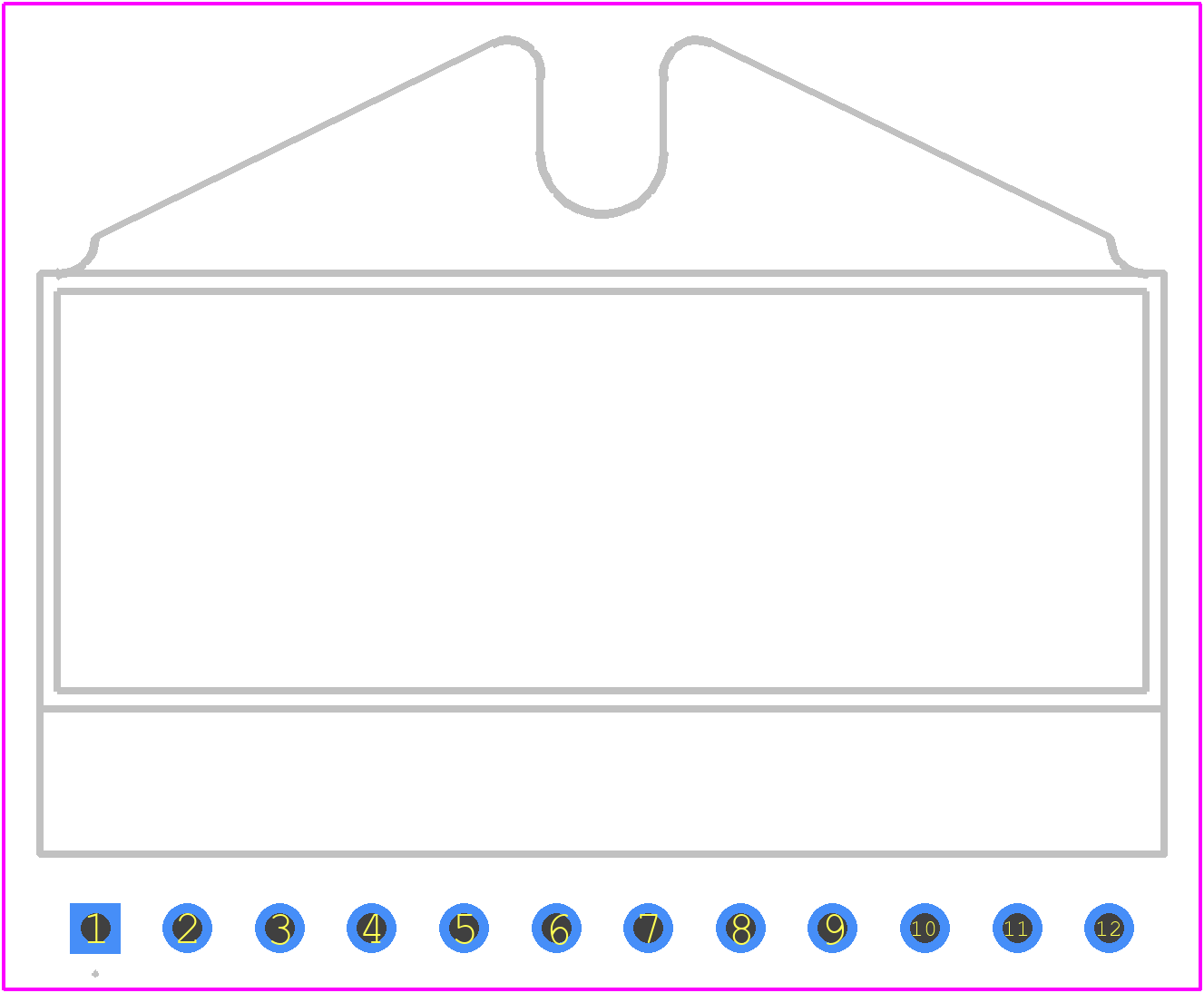

PA93EE - Apex Microtechnology PCB footprint - Other - Other - EE 12-Pin SIP w/ formed leads
click to zoom
3D Models
PA93EE - Apex Microtechnology - 3D model - Other - EE 12-Pin SIP w/ formed leads
click to zoom

PA93EE Details

  • Manufacturer Part Number:

    PA93EE

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Pin Count:

    12

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bias Current-Max (IIB) @25C:

    0.002 µA

  • Frequency Compensation:

    YES (AVCL>=17)

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-609 Code:

    e3

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage-Nom (Vsup):

    -150 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SIP12(UNSPEC)

  • Power:

    YES

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    14 mA

  • Supply Voltage Limit-Max:

    200 V

  • Supply Voltage-Nom (Vsup):

    150 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Position:

    SINGLE

  • Voltage Gain-Min:

    50100

  • Wideband:

    NO

PA93EE Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • To ensure reliable operation at high temperatures, Apex recommends derating the output current and voltage, and using a heat sink or thermal pad to keep the junction temperature below 150°C. Additionally, using a thermally conductive material for the PCB and ensuring good airflow can help.
  • Apex recommends using input capacitance of 10-22uF and output capacitance of 10-47uF, with a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
  • Apex recommends using overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device. Additionally, using a fuse or current limiting resistor can also help protect the device from overcurrent conditions.
  • Apex recommends a soft-start sequence to prevent inrush currents and voltage spikes. A slow ramp-up of the input voltage and a delay before enabling the output can help ensure reliable startup and shutdown.
