Description:900V, 1.6mA Power Amplifier with Low Standby Current, High voltage – 900V (±450V), Low quiescent current – 1.6mA, High output current – 100mA continuous, 200mA PEAK.
Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the amplifier. The input and output traces should be kept short and away from each other to minimize coupling.
Apex recommends using a voltage regulator to limit the input voltage to 15V or less, and a current limiter or fuse to prevent overcurrent. Additionally, a transient voltage suppressor (TVS) can be used to protect against voltage spikes.
Apex provides a thermal derating curve in the application note, which shows the maximum power dissipation vs. temperature. The curve indicates that the device can operate up to 150°C, but the power dissipation must be reduced to prevent overheating.
Yes, the PA95 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, Apex recommends using a matched pair of devices and a balanced input stage to ensure optimal performance.
Apex recommends a heatsink with a thermal resistance of 1°C/W or less, and a surface finish that ensures good thermal contact with the device. A heatsink with a thermal interface material (TIM) can also be used to improve thermal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA95 Overview

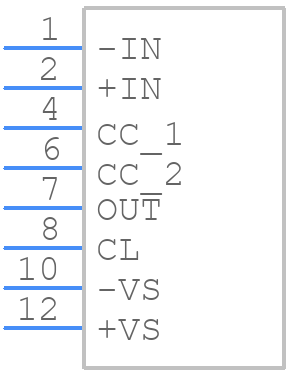

Use the download button to access the PA95 schematic symbol, PCB footprint, and 3D model.
