PAC1720-1-AIA-TR - Microchip

Description: Microchip PAC1720-1-AIA-TR, Current Monitor Dual Differential 10-Pin DFN

Download PAC1720-1-AIA-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

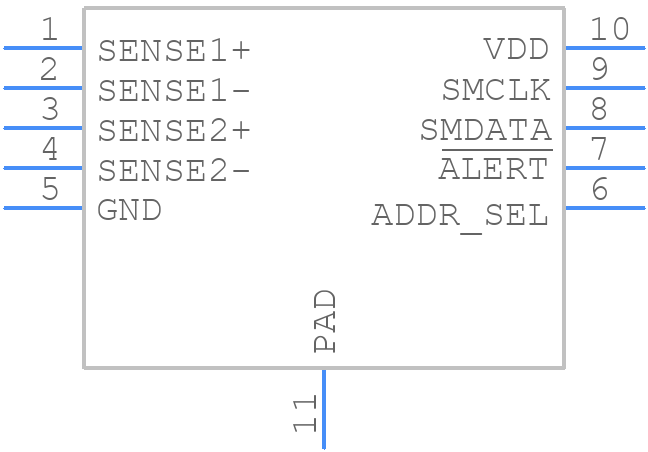

PAC1720-1-AIA-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
PAC1720-1-AIA-TR - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN
click to zoom
3D Models
PAC1720-1-AIA-TR - Microchip - 3D model - Small Outline No-lead - DFN
click to zoom

PAC1720-1-AIA-TR Details

  • Manufacturer Part Number:

    PAC1720-1-AIA-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON, SOLCC10,.12,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    VDFN-10

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

PAC1720-1-AIA-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PAC1720-1-AIA-TR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load.
  • To ensure accurate current measurement, make sure to use a sense resistor with a low temperature coefficient, keep the sense resistor close to the device, and use a Kelvin connection to minimize the impact of lead resistance.
  • The maximum allowed voltage on the VCC pin of the PAC1720-1-AIA-TR is 5.5V. Exceeding this voltage can damage the device.
  • The thermal shutdown feature of the PAC1720-1-AIA-TR is designed to protect the device from overheating. If the device exceeds the maximum junction temperature, it will shut down until the temperature returns to a safe level. To handle this feature, ensure good thermal design and heat dissipation in your system.
  • The PAC1720-1-AIA-TR is rated for operation up to 125°C. However, the device's accuracy and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.
