PAC1934T-I/J6CX - Microchip

Description: MICROCHIP - PAC1934T-I/J6CX - DC POWER/ENERGY MONITOR IC, WLCSP-16

Download PAC1934T-I/J6CX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

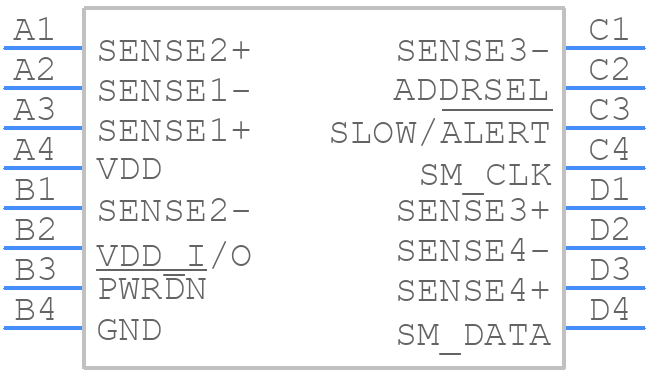

PAC1934T-I/J6CX - Microchip - PCB symbol
click to zoom
PCB Footprints
PAC1934T-I/J6CX - Microchip PCB footprint - BGA - BGA - 2.225x2.1733 CS PACKAGE 16 BALL
click to zoom
3D Models
PAC1934T-I/J6CX - Microchip - 3D model - BGA - 2.225x2.1733 CS PACKAGE 16 BALL
click to zoom

PAC1934T-I/J6CX Details

  • Manufacturer Part Number:

    PAC1934T-I/J6CX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    WLCSP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2017-11-16

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.225 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.679 mm

  • Supply Current-Max (Isup):

    0.675 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.17 mm

PAC1934T-I/J6CX Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the high-current paths short and wide, and to use a solid ground plane to reduce noise. It's also recommended to place the PAC1934T-I/J6CX close to the sense resistors and to use a Kelvin connection to the sense resistors to minimize parasitic inductance and resistance.
  • Calibration involves adjusting the gain and offset of the ADC to match the specific application. This can be done by applying a known current and voltage to the PAC1934T-I/J6CX and adjusting the gain and offset registers to achieve accurate measurements. The datasheet provides a calibration procedure that can be followed.
  • The PAC1934T-I/J6CX can measure currents up to 32V and 3A. In overcurrent conditions, the device has a built-in overcurrent detection feature that can trigger an interrupt to the host microcontroller. The device also has a programmable overcurrent threshold to allow for customization of the overcurrent detection.
  • The PAC1934T-I/J6CX has built-in noise filtering and averaging to reduce the effects of noise and interference. Additionally, the device has a high common-mode rejection ratio (CMRR) to reject common-mode noise. It's also recommended to use proper PCB layout and shielding techniques to minimize noise and interference.
  • The PAC1934T-I/J6CX is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's accuracy and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and application notes for specific guidance.
