PAC1942T-2E/4MX - Microchip

Description: Current & Power Monitors & Regulators Dual Low Side Power Monitor, I2C/SMBus, 2 Alerts, 9V

Download PAC1942T-2E/4MX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

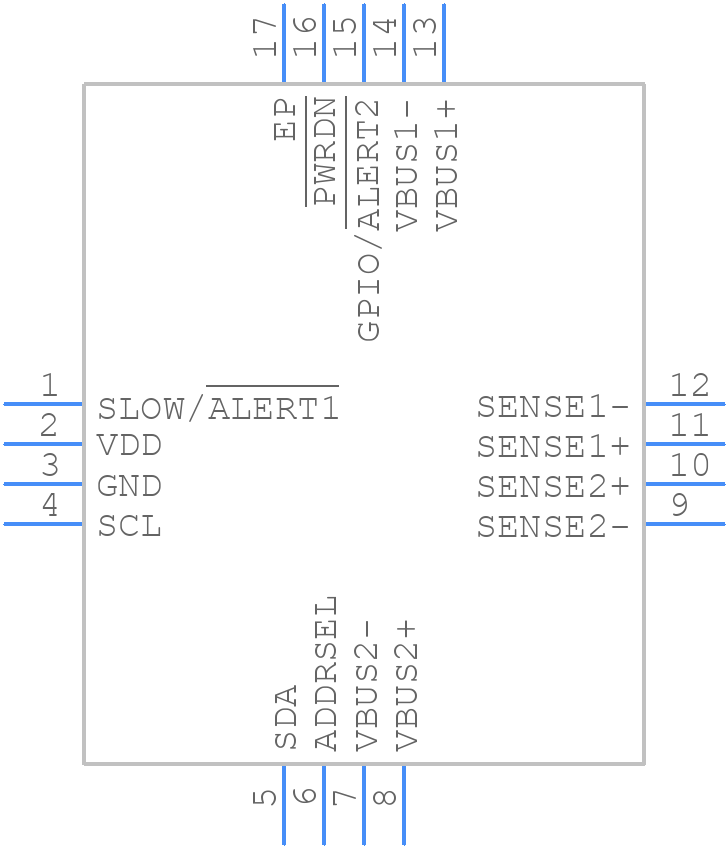

Symbol
PAC1942T-2E/4MX - Microchip - PCB symbol
click to zoom
PCB Footprints
PAC1942T-2E/4MX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PAC1942T-2E/4MX
click to zoom
3D Models
PAC1942T-2E/4MX - Microchip - 3D model - Quad Flat No-Lead - PAC1942T-2E/4MX
click to zoom

PAC1942T-2E/4MX Details

  • Manufacturer Part Number:

    PAC1942T-2E/4MX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    VQFN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.495 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PAC1942T-2E/4MX Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the PAC1942T-2E/4MX evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The PAC1942T-2E/4MX requires calibration for accurate measurements. Microchip provides a calibration procedure in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal calibration registers accordingly.
  • The PAC1942T-2E/4MX has an operating temperature range of -40°C to +125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's essential to consider the thermal management and cooling requirements for the device in the system design.
  • The PAC1942T-2E/4MX is designed for low-frequency measurements (up to 1 kHz) and is not suitable for high-frequency measurements. For high-frequency measurements, consider using a different device or adding external filtering and signal conditioning circuits.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider adding external filters and protection devices to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAC1942T-2E/4MX Overview

Use the download button to access the PAC1942T-2E/4MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAC19, or try a keyword search, such as Power Management Circuits
