A good PCB layout for the PAC1951T-1E/4MX involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure accurate measurements, it's essential to follow proper layout and routing guidelines, use a low-noise power supply, and minimize electromagnetic interference (EMI). Additionally, calibrate the device according to the datasheet recommendations, and use a high-precision voltage reference if necessary.
The PAC1951T-1E/4MX is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
Yes, the PAC1951T-1E/4MX is suitable for high-reliability and safety-critical applications, such as in automotive, industrial, and medical devices. However, it's essential to follow the device's specific requirements and guidelines for these types of applications, and to consult with Microchip's technical support team if necessary.
To troubleshoot issues with the PAC1951T-1E/4MX, start by consulting the datasheet and application notes, and then follow a systematic approach to identify the root cause of the problem. This may involve checking the device's configuration, power supply, and PCB layout, as well as using debugging tools and simulation software.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAC1951T-1E/4MX Overview

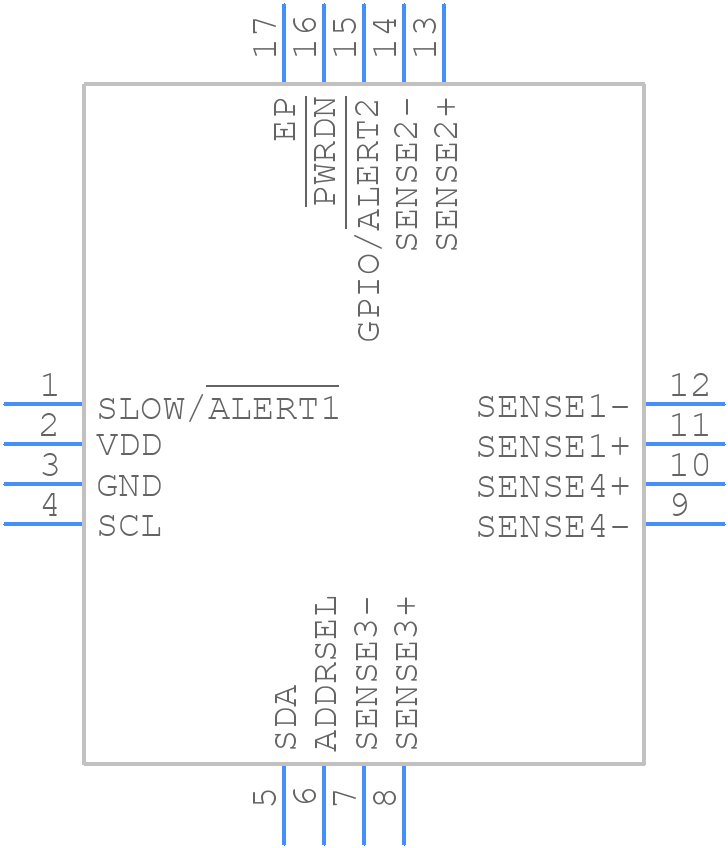

Use the download button to access the PAC1951T-1E/4MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAC19,
or try a keyword search, such as Power Management Circuits
