PAC1952T-2E/J6CX - Microchip

Description: Current & Power Monitors & Regulators Dual Low Side Power Monitor, I2C/SMBus, 2 Alerts, 32V

Download PAC1952T-2E/J6CX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

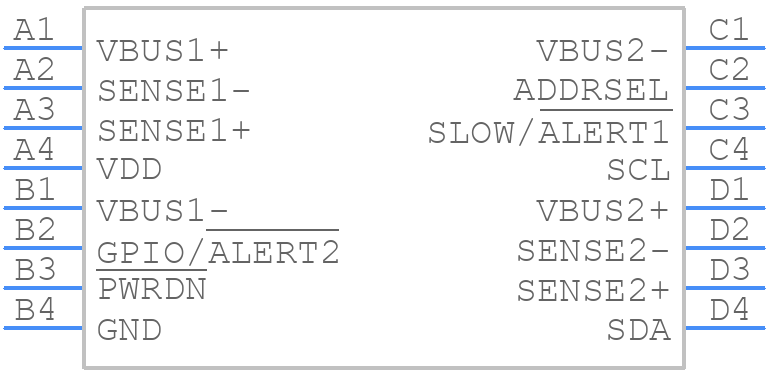

PAC1952T-2E/J6CX - Microchip - PCB symbol
click to zoom
PCB Footprints
PAC1952T-2E/J6CX - Microchip PCB footprint - BGA - BGA - 16-Ball Wafer Level Chip Scale Package (CS) -2.225x2.17mm Body [WLCSP]
click to zoom
3D Models
PAC1952T-2E/J6CX - Microchip - 3D model - BGA - 16-Ball Wafer Level Chip Scale Package (CS) -2.225x2.17mm Body [WLCSP]
click to zoom

PAC1952T-2E/J6CX Details

  • Manufacturer Part Number:

    PAC1952T-2E/J6CX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    WLCSP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.225 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.679 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.17 mm

PAC1952T-2E/J6CX Frequently Asked Questions (FAQs)

  • The maximum power consumption of the PAC1952T-2E/J6CX is typically around 1.5mA (active mode) and 0.5µA (shutdown mode), but this can vary depending on the specific application and operating conditions.
  • To achieve high-accuracy measurements, ensure that the device is properly calibrated, and the input voltage range is within the specified limits. Also, use a high-quality external voltage reference and follow the recommended layout and routing guidelines for the PCB.
  • The PAC1952T-2E/J6CX is designed for low-frequency measurements (up to 100 kHz). While it can be used for higher frequencies, the accuracy and noise performance may degrade. For high-frequency measurements, consider using a different device or adding external filtering and amplification stages.
  • The PAC1952T-2E/J6CX can be interfaced with a microcontroller using the I2C or SPI bus. Ensure that the microcontroller's clock frequency and data transfer rate are compatible with the PAC1952T-2E/J6CX's specifications. Also, follow the recommended protocol and timing diagrams for data transfer.
  • The typical settling time for the PAC1952T-2E/J6CX is around 100 µs to 1 ms, depending on the input signal frequency and amplitude. This settling time can affect the accuracy of measurements, so ensure that the device has sufficient time to settle before taking readings.
