PAC1953T-E/J6CX - Microchip

Description: Current & Power Monitors & Regulators Triple High-Side Current Sensor, I2C/SMBus, 2 Alerts, 32V

Download PAC1953T-E/J6CX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

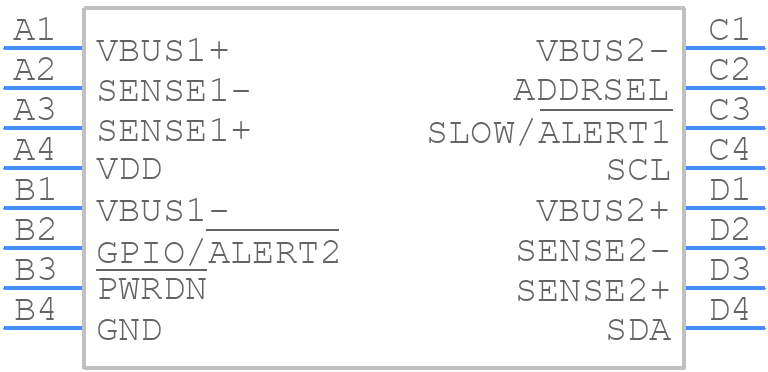

PAC1953T-E/J6CX - Microchip - PCB symbol
click to zoom
PCB Footprints
PAC1953T-E/J6CX - Microchip PCB footprint - BGA - BGA - 16-Ball Wafer Level Chip Scale Package (CS)
click to zoom
3D Models
PAC1953T-E/J6CX - Microchip - 3D model - BGA - 16-Ball Wafer Level Chip Scale Package (CS)
click to zoom

PAC1953T-E/J6CX Details

  • Manufacturer Part Number:

    PAC1953T-E/J6CX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    WLCSP-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    2.225 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA16,4X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.679 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.17 mm

PAC1953T-E/J6CX Frequently Asked Questions (FAQs)

  • The maximum current rating for the PAC1953T-E/J6CX is 1A per channel, with a total current limit of 2A for both channels combined.
  • To configure the PAC1953T-E/J6CX for bidirectional current measurement, connect the sense resistor (Rsense) between the VIN+ and VIN- pins, and use the internal gain amplifier to amplify the voltage across the sense resistor. Then, use the ADC to measure the amplified voltage, which represents the bidirectional current.
  • The VREF pin on the PAC1953T-E/J6CX is used as a reference voltage for the internal ADC. It should be connected to a stable voltage source, typically VCC or a voltage regulator output, to ensure accurate ADC measurements.
  • Yes, the PAC1953T-E/J6CX can be used for high-side current measurement by connecting the sense resistor (Rsense) between the VIN+ pin and the high-side voltage rail. However, ensure that the voltage on the VIN+ pin does not exceed the maximum rating of 26V.
  • To calculate the power consumption of the PAC1953T-E/J6CX, use the following formula: P = (VCC x ICC) + (VIN x IIN), where VCC is the supply voltage, ICC is the quiescent current, VIN is the input voltage, and IIN is the input current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAC1953T-E/J6CX Overview

Use the download button to access the PAC1953T-E/J6CX schematic symbol, PCB footprint, and 3D model.
