PAC25141NSR - Qorvo

Description: Intelligent Battery Management SOC with integrated Arm Cortex M4F MCU & Cell Balancing

Download PAC25141NSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PAC25141NSR - Qorvo - PCB symbol
click to zoom
PCB Footprints

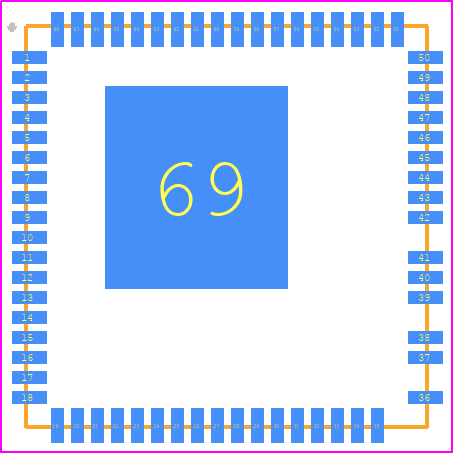

PAC25141NSR - Qorvo PCB footprint - Other - Other - QFN68_Offset_Pad
click to zoom
3D Models
PAC25141NSR - Qorvo - 3D model - Other - QFN68_Offset_Pad
click to zoom

PAC25141NSR Details

  • Manufacturer Part Number:

    PAC25141NSR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Qorvo

  • YTEOL:

    6

  • Analog IC - Other Type:

    POWER SUPPLY MANAGEMENT CIRCUIT

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

PAC25141NSR Frequently Asked Questions (FAQs)

  • Qorvo recommends a PCB layout with a solid ground plane and thermal vias under the device to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation at high temperatures, it's essential to follow Qorvo's recommended thermal design guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The maximum allowed voltage on the enable pin (EN) is 3.6V. Exceeding this voltage may damage the device.
  • Yes, the PAC25141NSR can be used in switching regulator applications. However, it's essential to ensure that the device is properly bypassed and filtered to prevent high-frequency noise from affecting its operation.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are properly selected and that the output voltage is within the specified range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAC25141NSR Overview

Use the download button to access the PAC25141NSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAC25, or try a keyword search, such as Data Line Filters

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
