PAM2841SR - Diodes Incorporated

Description: DiodesZetex PAM2841SR LED Driver IC, 2.7 → 5.5 V dc 40mA 8-Pin MSOP

Download PAM2841SR Model

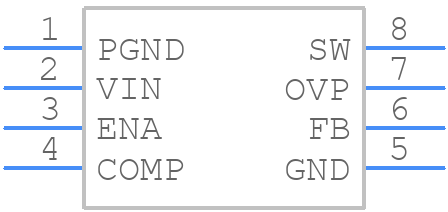

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM2841SR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8
click to zoom
3D Models
PAM2841SR - Diodes Incorporated  - 3D model - Small Outline Packages - MSOP-8
click to zoom

PAM2841SR Details

  • Manufacturer Part Number:

    PAM2841SR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PAM2841SR Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. The copper area should be at least 1 inch x 1 inch in size and should be connected to a solid ground plane to ensure good heat dissipation.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF with an ESR of less than 1 ohm. Additionally, the input capacitor should be placed as close to the VIN pin as possible to reduce noise and ripple.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • To reduce noise and ripple on the output voltage, it is recommended to add a 10nF ceramic capacitor in parallel with the output capacitor. Additionally, the input capacitor should be placed as close to the VIN pin as possible to reduce noise and ripple.
  • The maximum output current that can be drawn from the PAM2841SR is 4A. However, it is recommended to limit the output current to 3.5A to ensure reliable operation and to prevent overheating.
