PAM3116BLBADJR - Diodes Incorporated

Description: 1.5A LOW DROPOUT VOLTAGE CMOS REGULATOR

Download PAM3116BLBADJR Model

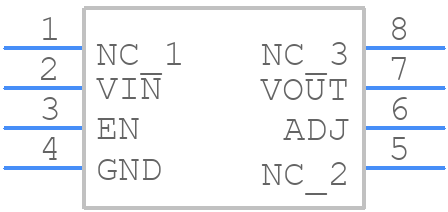

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM3116BLBADJR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8
click to zoom
3D Models
PAM3116BLBADJR - Diodes Incorporated  - 3D model - Small Outline Packages - SOP-8
click to zoom

PAM3116BLBADJR Details

  • Manufacturer Part Number:

    PAM3116BLBADJR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.4

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PAM3116BLBADJR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it's recommended to use a minimum of 10uF ceramic capacitor at the output, and to place it as close to the output pin as possible. Additionally, using a low ESR capacitor can help to reduce output voltage ripple.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout x Rl) / (f x C), where ΔVout is the output voltage ripple, Iout is the output current, Rl is the load resistance, f is the switching frequency, and C is the output capacitance.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This helps to filter out input voltage noise and ensure stable operation.
