PAM8006ATR footprint, schematic symbol and 3D model by Diodes Incorporated

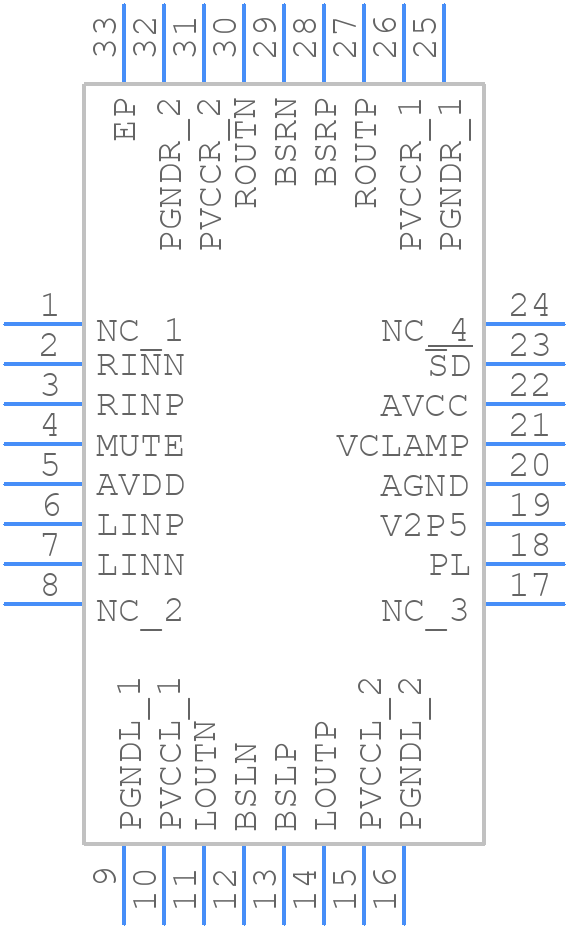

Symbol

click to zoom

PCB Footprints

PAM8006ATR - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN5x5-32L

click to zoom

3D Models

PAM8006ATR - Diodes Incorporated - 3D model - Quad Flat No-Lead - QFN5x5-32L

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PAM8006ATR
Part Number PAM8006ATR
Manufacturer Diodes Incorporated
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN5x5-32L
Released Date Jun 26, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PAM8006ATR Details

Manufacturer Part Number:
PAM8006ATR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-32
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
8
Bandwidth-Nom:
22 kHz
Consumer IC Type:
CLASS D AUDIO AMPLIFIER
Gain:
32 dB
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Output Power-Nom:
15 W
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
26 V
Supply Voltage-Min (Vsup):
8 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm

PAM8006ATR Frequently Asked Questions (FAQs)

A good PCB layout for the PAM8006ATR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the input and output.
The PAM8006ATR is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on thermal derating.
Yes, the PAM8006ATR is designed to meet the CISPR 25 Class 5 EMI standard. However, to ensure optimal EMI performance, follow the recommended PCB layout guidelines and use a shielded enclosure if necessary.
The recommended input voltage range for the PAM8006ATR is 6.5V to 18V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

PAM8006ATR Overview

Use the download button to access the PAM8006ATR schematic symbol, PCB footprint, and 3D model.
