A good PCB layout for PAM8012AZN involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R).
The maximum ambient temperature range for the PAM8012AZN is -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Yes, the PAM8012AZN is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly soldered and the PCB is securely mounted to prevent mechanical stress and vibration-induced failures.
To troubleshoot issues with the PAM8012AZN, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and the PCB is free of defects. Use an oscilloscope to analyze the output waveform and identify any anomalies.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8012AZN Overview

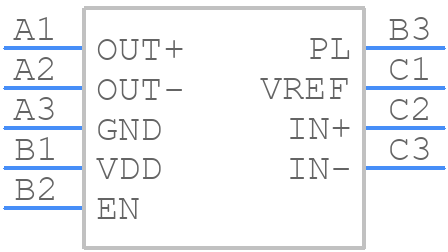

Use the download button to access the PAM8012AZN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM80,
or try a keyword search, such as Audio/Video Amplifiers
