PAM8019KGR - Diodes Incorporated

Description: Audio Amplifiers 3W CLASS-D AUDIO AMP w/ CLASS AB HP DRV

Download PAM8019KGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

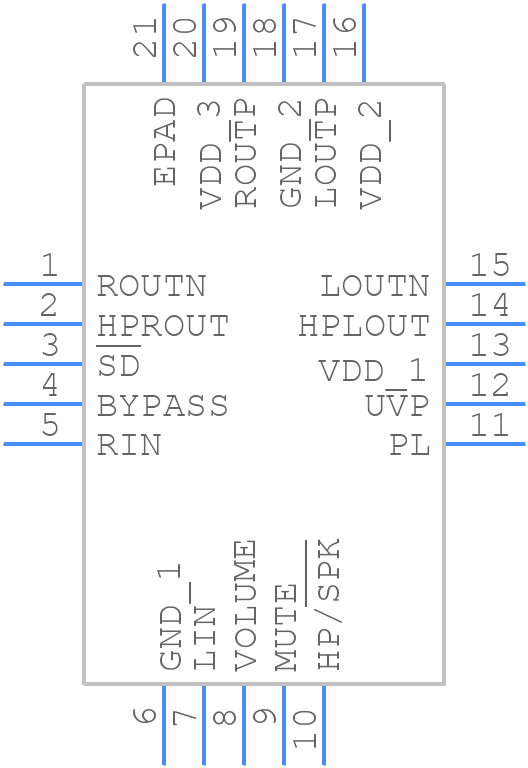

PAM8019KGR - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PAM8019KGR - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - U-QFN4040-20
click to zoom
3D Models
PAM8019KGR - Diodes Incorporated - 3D model - Quad Flat No-Lead - U-QFN4040-20
click to zoom

PAM8019KGR Details

  • Manufacturer Part Number:

    PAM8019KGR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    4 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

PAM8019KGR Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, it is recommended to have a minimum of 2 vias under the IC to connect the thermal pad to the ground plane.
  • To ensure stability, it is recommended to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output with capacitors, and use a low-ESR output capacitor. Also, avoid using long traces and minimize the loop area of the power stage.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it is recommended to limit the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • Diodes Incorporated recommends using a ceramic or film capacitor with a value of 10uF to 22uF, and a voltage rating of 6.3V or higher. The capacitor should be placed as close as possible to the VIN pin.
