PAM8302AADCR - Diodes Incorporated

Description: Audio Amplifiers 2.5W MONO FILTERLESS CLASS-D AUDIO AMP

Download PAM8302AADCR Model

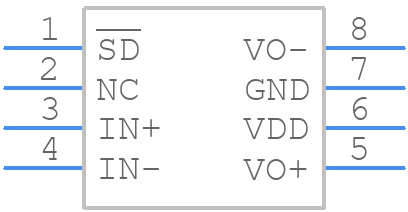

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PAM8302AADCR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - so8*8
click to zoom
3D Models
PAM8302AADCR - Diodes Incorporated  - 3D model - Small Outline Packages - so8*8
click to zoom

PAM8302AADCR Details

  • Manufacturer Part Number:

    PAM8302AADCR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PAM8302AADCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PAM8302AADCR involves keeping the audio signal traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and electromagnetic interference (EMI).
  • The gain setting of the PAM8302AADCR can be optimized by adjusting the values of the external resistors Rf and Rg. A higher gain setting can be achieved by increasing the value of Rf or decreasing the value of Rg. However, be careful not to exceed the maximum gain setting to avoid oscillation or instability.
  • The recommended power-up sequence for the PAM8302AADCR is to first apply the power supply voltage (VCC) and then apply the audio input signal. This ensures that the device is properly biased and stabilized before the audio signal is applied.
  • To minimize EMI in your design, use a shielded enclosure, keep the audio signal traces as short as possible, and use a common-mode choke or ferrite bead on the power supply lines. Additionally, consider using a spread-spectrum clock generator to reduce electromagnetic radiation.
  • The maximum power dissipation of the PAM8302AADCR is 1.4W. However, this value can be affected by the ambient temperature, PCB layout, and other factors. Be sure to check the thermal design and power dissipation calculations to ensure reliable operation.
