PAM8320RDR - Diodes Incorporated

Description: 20W Mono Class D Audio Amplifier SO16EP DiodesZetex PAM8320RDR Audio Amplifier, Class-D Mono, 16-Pin SOIC

Download PAM8320RDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

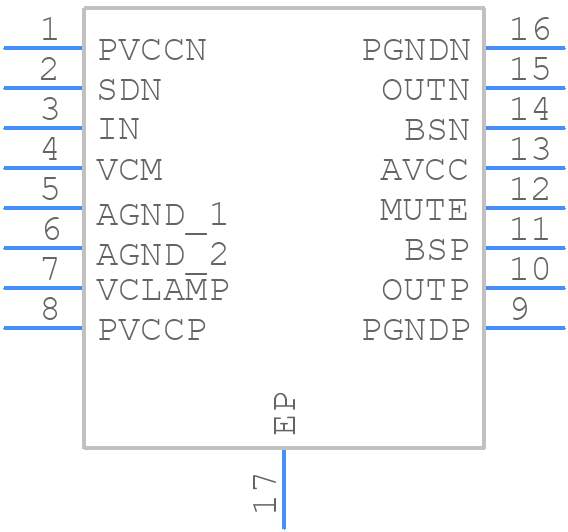

PAM8320RDR - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PAM8320RDR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - PAM8320RDR-1
click to zoom
3D Models
PAM8320RDR - Diodes Incorporated - 3D model - Small Outline Packages - PAM8320RDR-1
click to zoom

PAM8320RDR Details

  • Manufacturer Part Number:

    PAM8320RDR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PAM8320RDR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the recommended operating conditions specified in the datasheet. Use proper thermal management and PCB design to prevent overheating.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed close to the device's input pins to minimize noise and ripple.
  • Check the input voltage, output current, and feedback resistors for correct values and connections. Verify that the output capacitor is properly sized and placed. Use an oscilloscope to measure the output voltage and check for oscillations or noise.
  • A low-ESR ceramic capacitor with a value of 10uF to 47uF is recommended for output filtering. The capacitor should be placed close to the device's output pins to minimize noise and ripple.
