A good PCB layout for the PAM8803NHR should prioritize thermal management, minimize parasitic inductance, and ensure good power supply decoupling. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Place the device near the power source and use short, wide traces for power and ground connections.
Choose input capacitors with low ESR and high ripple current rating to minimize voltage ripple and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter out high-frequency noise. A 10uF to 22uF input capacitor and a 22uF to 47uF output capacitor are good starting points.
The PAM8803NHR is rated for operation up to 85°C ambient temperature. However, to ensure reliable operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and reduce the risk of overheating.
Start by checking the input voltage, output voltage, and current consumption. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for overheating, and ensure that the device is properly soldered and mounted. Use an oscilloscope to check for noise and ripple on the input and output lines.
The PAM8803NHR is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. Ensure that the device is operated within its recommended specifications, and consider additional testing and validation to meet the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8803NHR Overview

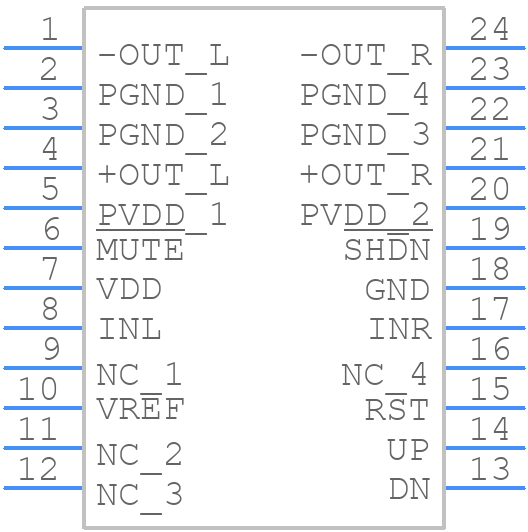

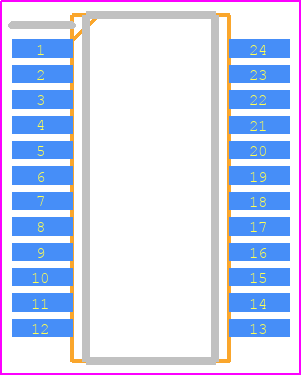

Use the download button to access the PAM8803NHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM88,
or try a keyword search, such as Audio Control ICs
