PAM8904EJPR footprint, schematic symbol and 3D model by Diodes Incorporated

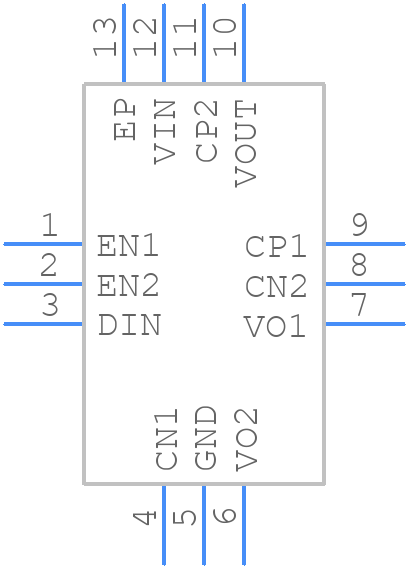

Symbol

click to zoom

PCB Footprints

PAM8904EJPR - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - U-QFN3030-12 (Type A)

click to zoom

3D Models

PAM8904EJPR - Diodes Incorporated - 3D model - Quad Flat No-Lead - U-QFN3030-12 (Type A)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PAM8904EJPR
Part Number PAM8904EJPR
Manufacturer Diodes Incorporated
Pin Count 13
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - U-QFN3030-12 (Type A)
Released Date Dec 21, 2019
Last Modified Date Mar 18, 2024 1:06 PM UTC
Pinout / Pin List Click Here (Member Only)

PAM8904EJPR Details

Manufacturer Part Number:
PAM8904EJPR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
UQFN-12
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
12 Weeks
Date Of Intro:
2019-06-13
Manufacturer:
Diodes Incorporated
Built-in Protections:
OVER CURRENT; OVER VOLTAGE; UNDER VOLTAGE; THERMAL
Driver Number of Bits:
1
Interface IC Type:
PIEZO SOUNDER DRIVER
JESD-30 Code:
S-PQCC-N12
Length:
3 mm
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Peak Current Limit-Nom:
0.049 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
HUQCCN
Package Equivalence Code:
LCC12,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, ULTRA THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
1.5 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Turn-off Time:
42000 µs
Turn-on Time:
1910 µs
Width:
3 mm

PAM8904EJPR Frequently Asked Questions (FAQs)

A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To optimize the output filter design, you need to consider the output voltage ripple requirement, output current, and the type of load. A good starting point is to use the recommended output filter components in the datasheet, and then adjust them based on your specific application requirements.
The maximum input voltage that can be applied to the PAM8904EJPR is 18V. Exceeding this voltage may damage the device.
To ensure the stability of the output voltage, make sure to use the recommended output capacitor value and type, and to follow the recommended PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
The maximum output current that the PAM8904EJPR can deliver is 2A. Exceeding this current may cause the device to overheat or malfunction.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PAM8904EJPR Overview

Use the download button to access the PAM8904EJPR schematic symbol, PCB footprint, and 3D model.
