A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
Monitor the input voltage, output current, and junction temperature to ensure they are within the recommended operating conditions specified in the datasheet.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed as close to the VIN pin as possible.
Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke to reduce EMI. Follow the recommended PCB layout guidelines to minimize radiation.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8904QJER Overview

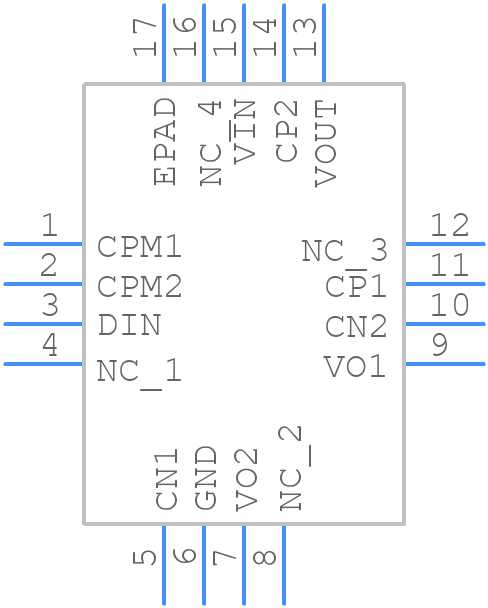

Use the download button to access the PAM8904QJER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM89,
or try a keyword search, such as Other Consumer ICs
