Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The PAMC3301DWER is rated for operation from -40°C to 125°C. To ensure operation within this range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad on the bottom of the package can be connected to a heat sink or a thermal via to dissipate heat. Additionally, ensure that the device is not exposed to extreme temperatures during storage or handling.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize inductance and ensure stable operation.
To troubleshoot issues with the PAMC3301DWER, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering. Ensure that the device is not overheating by checking the temperature of the package. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the PAMC3301DWER is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow proper design and manufacturing practices to ensure the device operates reliably in these applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAMC3301DWER Overview

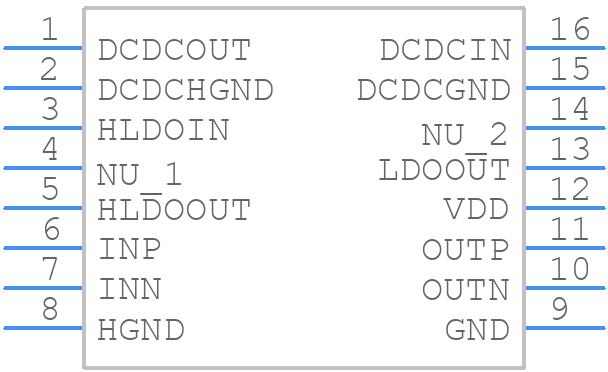

Use the download button to access the PAMC3301DWER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAMC3,
or try a keyword search, such as Isolation Amplifiers
