Infineon provides a recommended PCB layout and thermal management guide in their application note AN2019-01, which includes guidelines for thermal pad connection, PCB thickness, and copper thickness to ensure optimal performance and thermal dissipation.
The selection of input and output capacitors depends on the specific application and operating conditions. Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage. The capacitance value should be chosen based on the required ripple current and voltage ripple. A good starting point is to use 10uF to 22uF capacitors for both input and output.
According to the datasheet, the maximum allowed voltage deviation on the input pins is ±10% of the nominal input voltage. Exceeding this limit may affect the device's performance, reliability, or even cause damage.
To ensure EMC, follow the guidelines in Infineon's application note AN2019-01, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and/or a ferrite bead on the input lines to reduce electromagnetic interference (EMI).
Infineon recommends a soldering profile with a peak temperature of 260°C to 280°C, a dwell time above 260°C of 20-30 seconds, and a total process time of 60-90 seconds. This profile ensures reliable solder joints and minimizes the risk of damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PASCO2V01AUMA3 Overview

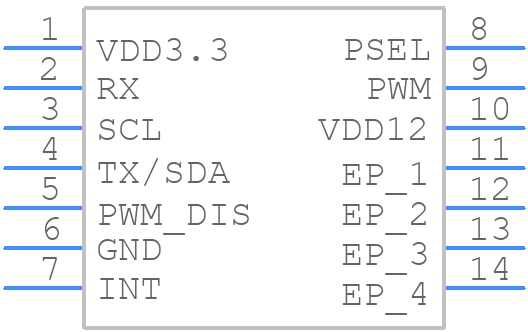

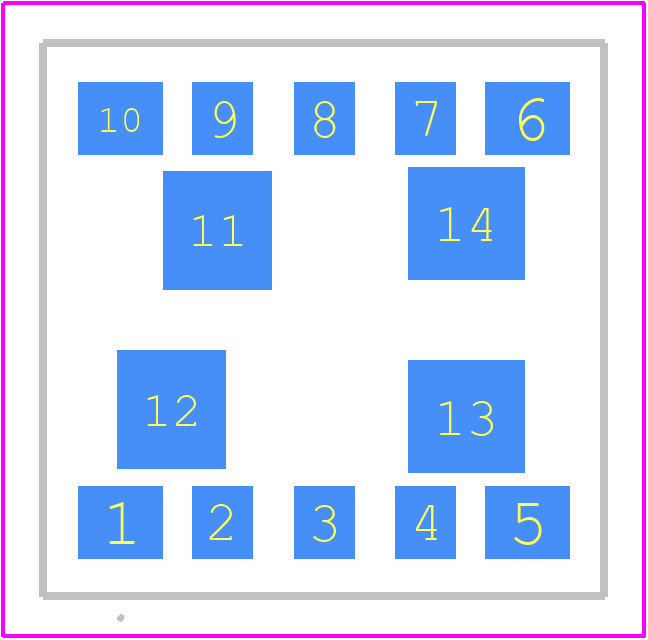

Use the download button to access the PASCO2V01AUMA3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PASCO,
or try a keyword search, such as Other Sensors/Transducers
