A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and decoupling capacitors should be placed close to the device.
Use a high-quality, low-ESR capacitor (e.g., 10uF, 16V, X7R) as close as possible to the device's power pins. Add additional decoupling capacitors (e.g., 100nF, 16V, X7R) near the device's power pins for high-frequency noise filtering.
The PASCO2V01BUMA1 is specified to operate from -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures.
Use ESD protection devices (e.g., TVS diodes or ESD arrays) on the input and output pins to protect the device from electrostatic discharge. Follow proper PCB design and handling practices to minimize ESD risks.
Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s, and time above 183°C 150s. Use a solder with a melting point below 217°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PASCO2V01BUMA1 Overview

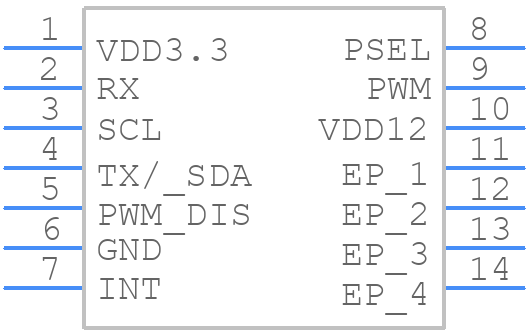

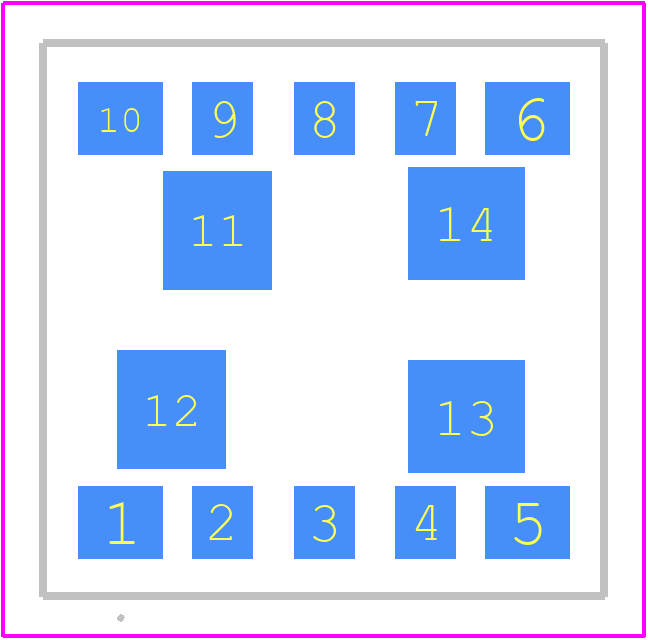

Use the download button to access the PASCO2V01BUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PASCO,
or try a keyword search, such as Other Sensors/Transducers
