Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The selection of a gate driver depends on the specific requirements of the application, such as the switching frequency, voltage, and current. Infineon recommends using their EiceDRIVER gate driver family, which is specifically designed to work with their power modules. The EiceDRIVER datasheet provides guidance on selecting the right gate driver for the PASCO2V15AUMA1.
The maximum allowed junction temperature for the PASCO2V15AUMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
Proper cooling can be achieved by ensuring good thermal contact between the device and the heat sink, using a heat sink with a high thermal conductivity, and providing adequate airflow. Infineon provides thermal resistance values in the datasheet, which can be used to calculate the required heat sink size and airflow.
Infineon recommends following the soldering conditions specified in their application note AN2013-01, which includes guidelines for soldering temperature, time, and flux type to ensure reliable assembly and minimize the risk of damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PASCO2V15AUMA1 Overview

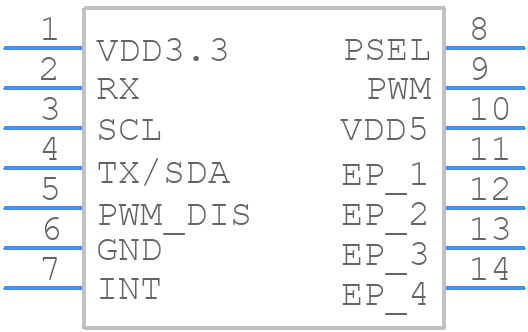

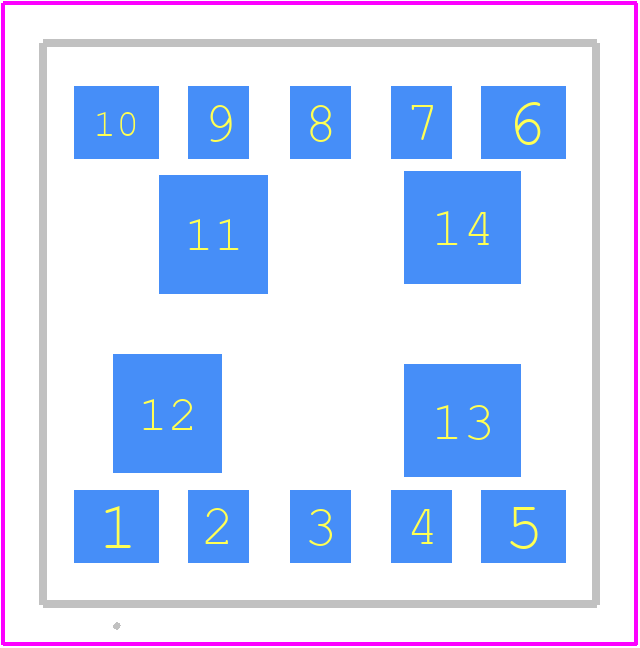

Use the download button to access the PASCO2V15AUMA1 schematic symbol, PCB footprint, and 3D model.
