PAT-0+ - Mini-Circuits

Description: Fixed Attenuator 50Ω 1W 0dB DC to 7000 MHz

Download PAT-0+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

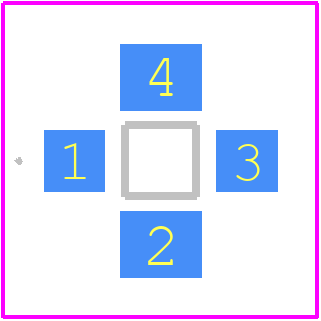

PAT-0+ - Mini-Circuits PCB footprint - Other - Other - PAT-0+-3
click to zoom
3D Models
PAT-0+ - Mini-Circuits  - 3D model - Other - PAT-0+-3
click to zoom

PAT-0+ Details

  • Manufacturer Part Number:

    PAT-0+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e2

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    5000 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    MODULE,4LEAD(UNSPEC)

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.55
