PAT-5+ footprint, schematic symbol and 3D model by Mini-Circuits

Symbol

click to zoom

PCB Footprints

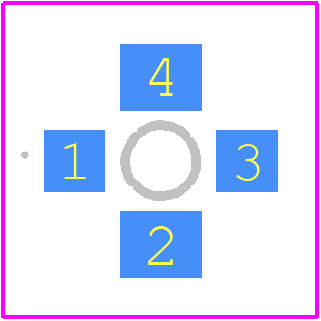

PAT-5+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: AF320

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PAT-5+
Part Number PAT-5+
Manufacturer Mini-Circuits
Pin Count 4
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - CASE STYLE: AF320
Released Date May 5, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PAT-5+ Details

Manufacturer Part Number:
PAT-5+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Attenuation-Nom:
5 dB
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
30 dBm
JESD-609 Code:
e2
Operating Frequency-Max:
7000 MHz
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
RF/Microwave Device Type:
FIXED ATTENUATOR
Terminal Finish:
Tin/Silver/Nickel (Sn/Ag/Ni)
VSWR-Max:
1.4

PAT-5+ Frequently Asked Questions (FAQs)

The maximum power handling of PAT-5+ is 2W, but it's recommended to derate the power to 1W for continuous operation to ensure reliability and prevent overheating.
The PAT-5+ has a nominal impedance of 50 ohms, but it's recommended to use a pi-network or a T-network to match the impedance to your system. You can use Mini-Circuits' own impedance matching tools or consult with their application engineers for assistance.
The operating temperature range of PAT-5+ is -40°C to +85°C, but the device is typically tested and characterized at room temperature (25°C). Operating the device outside of this range may affect its performance and reliability.
Yes, PAT-5+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range (typically up to 100 kHz). Additionally, you should consider the device's settling time and overshoot/undershoot characteristics.
The PAT-5+ requires a positive bias voltage (Vcc) of 12V to 15V, and a negative bias voltage (Vee) of -12V to -15V. The recommended bias current is 100 mA to 150 mA. It's essential to follow the recommended biasing scheme to ensure optimal performance and prevent damage to the device.

Trust Checks

Expert Contribution

System Verified

Community Approved

PAT-5+ Overview

Use the download button to access the PAT-5+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PAT-5, or try a keyword search, such as RF/Microwave Attenuators
