PAT-6+ - Mini-Circuits

Description: Attenuators 6 dB SMT Fixed Attenuator, DC - 7000 MHz, 50ohm

Download PAT-6+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

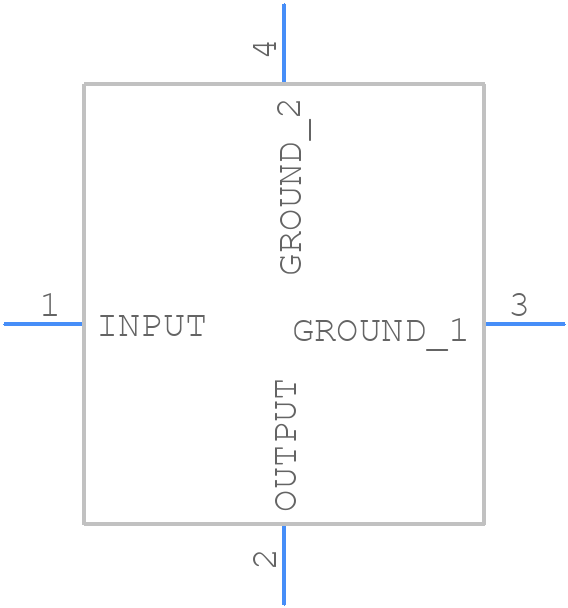

PAT-6+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PAT-6+ - Mini-Circuits PCB footprint - Other - Other - PAT-6+-1
click to zoom
3D Models
PAT-6+ - Mini-Circuits - 3D model - Other - PAT-6+-1
click to zoom

PAT-6+ Details

  • Manufacturer Part Number:

    PAT-6+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation-Nom:

    6 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e3

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    7000 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    MODULE,4LEAD(UNSPEC)

  • RF/Microwave Device Type:

    FIXED ATTENUATOR

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.4

PAT-6+ Frequently Asked Questions (FAQs)

  • The PAT-6+ can handle up to 2W of continuous power, making it suitable for high-power applications.
  • Yes, the PAT-6+ is designed to operate up to 6 GHz, making it suitable for high-frequency applications such as microwave and millimeter-wave systems.
  • The typical insertion loss of the PAT-6+ is around 0.5 dB, which is relatively low and makes it suitable for applications where signal loss needs to be minimized.
  • Yes, the PAT-6+ is designed to operate in a 50 ohm system and is impedance-matched to minimize reflections and ensure maximum power transfer.
  • Yes, the PAT-6+ is RoHS compliant, making it suitable for use in applications that require compliance with the European Union's Restriction of Hazardous Substances directive.
