PB1000 - Diotec

PB1000 Details

• Manufacturer Part Number:

  PB1000

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

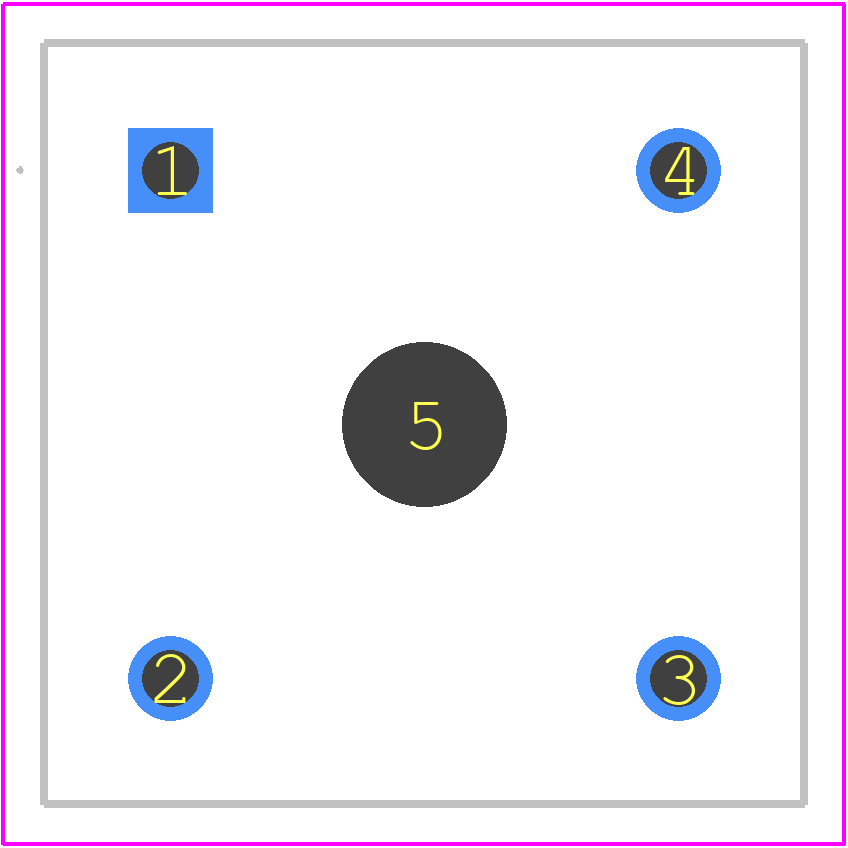

  19 X 19 MM, 6.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4

• Pin Count:

  4

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Date Of Intro:

  1993-07-06

• Manufacturer:

  Diotec Semiconductor AG

• YTEOL:

  6.85

• Configuration:

  BRIDGE, 4 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  BRIDGE RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.1 V

• JESD-30 Code:

  S-PUFM-W4

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  150 A

• Number of Elements:

  4

• Number of Phases:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -50 °C

• Output Current-Max:

  7 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Rep Pk Reverse Voltage-Max:

  50 V

• Surface Mount:

  NO

• Terminal Form:

  WIRE

• Terminal Position:

  UPPER
