PB1004 - Diotec

Description: Bridge Rectifiers Bridge, single phase, KBPC8-PB10, 400V, 10A, 150°C

Download PB1004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PB1004 - Diotec - PCB symbol
click to zoom
PCB Footprints

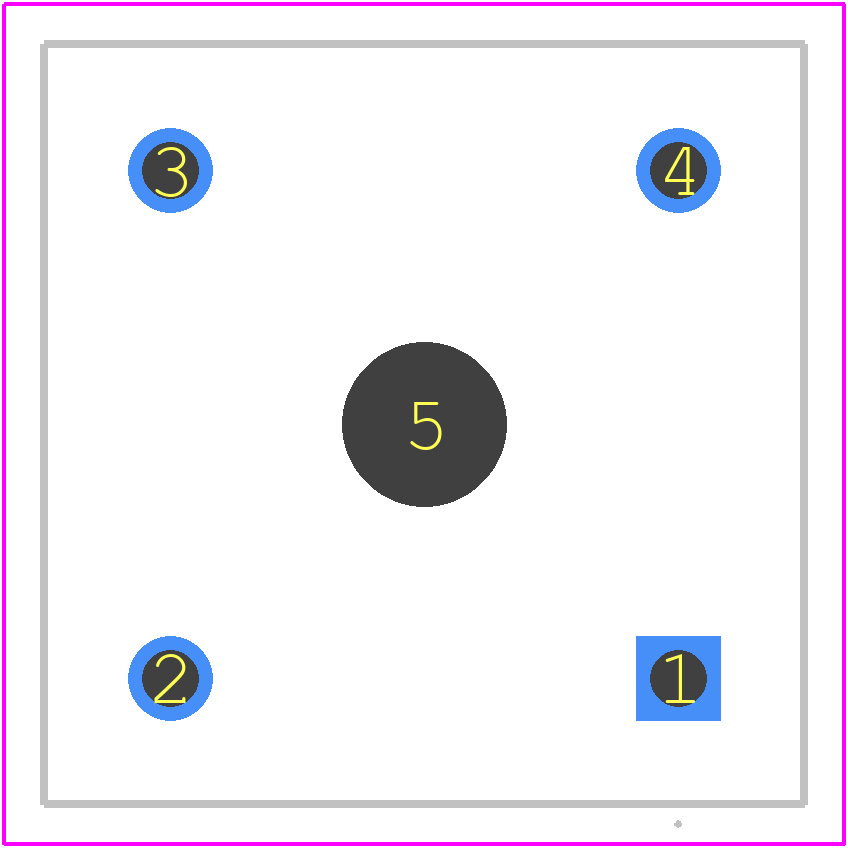

PB1004 - Diotec PCB footprint - Other - Other - KBPC 19 x 19 x 6.8mm
click to zoom
3D Models
PB1004 - Diotec - 3D model - Other - KBPC 19 x 19 x 6.8mm
click to zoom

PB1004 Details

  • Manufacturer Part Number:

    PB1004

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    19 X 19 MM, 6.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-4

  • Pin Count:

    4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    1993-07-06

  • Manufacturer:

    Diotec Semiconductor AG

  • YTEOL:

    6.85

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    400 V

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

PB1004 Frequently Asked Questions (FAQs)

  • A good PCB layout for the PB1004 should include a large copper area for heat dissipation, with multiple vias to the bottom layer to reduce thermal resistance. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material.
  • Although the datasheet doesn't specify a maximum allowed voltage transient, it's generally recommended to limit voltage transients to 10% of the maximum rated voltage to prevent damage to the device.
  • While the PB1004 is not specifically designed for high-frequency switching applications, it can be used in such applications with proper design considerations, such as minimizing lead inductance and using a suitable layout to reduce EMI.
  • To protect the PB1004 from EOS, it's recommended to use a TVS (transient voltage suppressor) diode or a varistor in parallel with the device, and ensure that the PCB layout is designed to minimize voltage stress.
