The recommended torque for the screw terminals of PBC06DBAN is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the PBC06DBAN connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.
Yes, the PBC06DBAN connector is designed to operate in harsh environments, with a temperature range of -40°C to 105°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
The PBC06DBAN connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
Yes, the PBC06DBAN connector is designed for automated assembly processes, with features such as pick-and-place compatibility and tape-and-reel packaging options.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBC06DBAN Overview

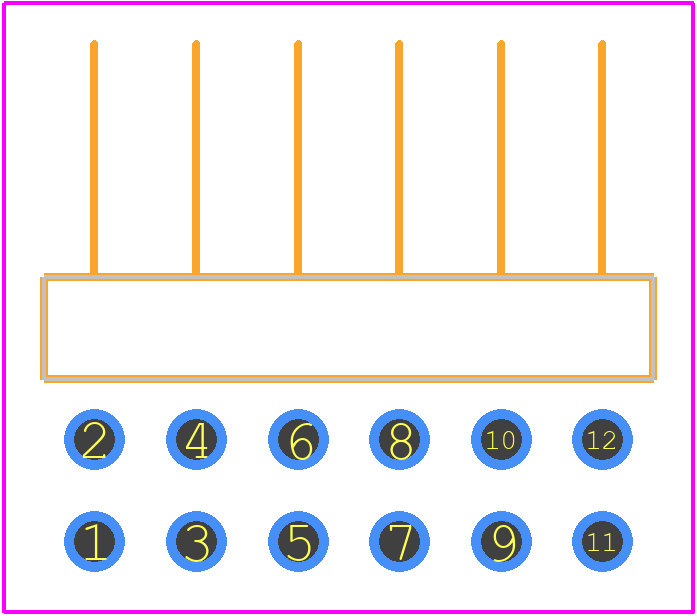

Use the download button to access the PBC06DBAN schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PBC06,
or try a keyword search, such as Headers and Edge Type Connectors
