The recommended torque for the screws on the PBC14SAAN connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the PBC14SAAN connector is designed to withstand high-vibration environments and is suitable for applications such as industrial control systems, transportation systems, and more.
Yes, the PBC14SAAN connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 105°C, and is resistant to moisture, dust, and other environmental factors.
The PBC14SAAN connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
Yes, the PBC14SAAN connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBC14SAAN Overview

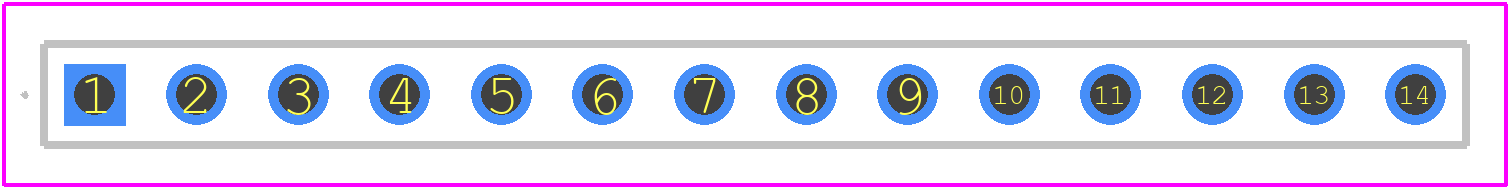

Use the download button to access the PBC14SAAN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBC14,
or try a keyword search, such as Headers and Edge Type Connectors
