PBH4UEENAGX - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC 4PDT, On-On Through Hole, Right Angle

Download PBH4UEENAGX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PBH4UEENAGX - E-Switch - PCB symbol
click to zoom
PCB Footprints

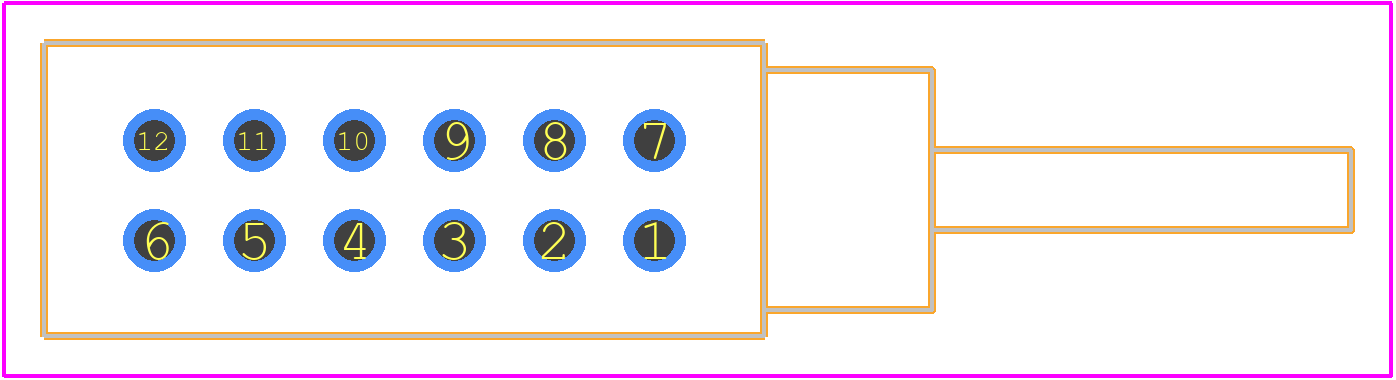

PBH4UEENAGX - E-Switch PCB footprint - Other - Other - PBH4UEENAGX-2
click to zoom
3D Models
PBH4UEENAGX - E-Switch - 3D model - Other - PBH4UEENAGX-2
click to zoom

PBH4UEENAGX Details

  • Manufacturer Part Number:

    PBH4UEENAGX

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    PUSHBUTTON SWITCH

PBH4UEENAGX Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PBH4UEENAGX is -20°C to 85°C.
  • To ensure proper mounting, use a soldering iron with a temperature of 250°C to 260°C, and apply a moderate amount of solder to the pins. Make sure the switch is aligned with the PCB pads and gently press it into place.
  • The maximum current rating for the PBH4UEENAGX is 50mA at 12VDC.
  • Use a soft-bristled brush or a lint-free cloth to gently remove any debris or contaminants from the switch. Avoid using harsh chemicals or solvents, as they may damage the switch's components.
  • The expected lifespan of the PBH4UEENAGX is approximately 100,000 to 200,000 cycles, depending on operating conditions and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBH4UEENAGX Overview

Use the download button to access the PBH4UEENAGX schematic symbol, PCB footprint, and 3D model.
