PBO-10-5 footprint, schematic symbol and 3D model by CUI Inc.

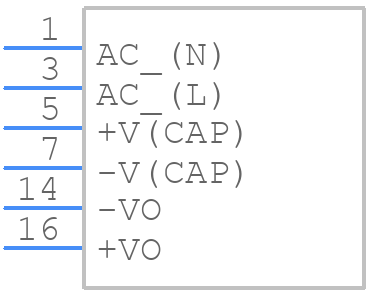

Symbol

click to zoom

PCB Footprints

PBO-10-5 - CUI Inc. PCB footprint - Other - Other - PBO-10-5-3

click to zoom

3D Models

PBO-10-5 - CUI Inc. - 3D model - Other - PBO-10-5-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBO-10-5
Part Number PBO-10-5
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PBO-10-5-3
Released Date Jun 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PBO-10-5 Details

Manufacturer Part Number:
PBO-10-5
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
DC INPUT VOLTAGE 100 TO 430 V
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
76%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
44.5 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
24 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO

PBO-10-5 Frequently Asked Questions (FAQs)

CUI Inc recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to ensure stable operation and minimize EMI.
While the PBO-10-5 is rated for operation up to 85°C, it's essential to consider derating the output power and ensuring proper heat sinking to prevent overheating. Consult with CUI Inc or a thermal expert for specific guidance.
CUI Inc recommends reviewing the PBO-10-5's certifications (e.g., UL, CE, RoHS) and consulting with a safety expert to ensure compliance with relevant standards and regulations for your specific application.
CUI Inc estimates the MTBF of the PBO-10-5 to be around 1.5 million hours, based on MIL-HDBK-217F calculations. However, this value may vary depending on the specific application and operating conditions.
Yes, the PBO-10-5 can be used in redundant or parallel configurations, but it's crucial to ensure proper synchronization and control to prevent instability or damage. Consult with CUI Inc or a power expert for guidance on implementing such configurations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PBO-10-5 Overview

Use the download button to access the PBO-10-5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PBO-1, or try a keyword search, such as Power Supply Modules

Parts related to PBO-10-5

Showing 0 results


Please enter a minimum 3 letters or numbers
