PBO-10C-12 footprint, schematic symbol and 3D model by CUI Inc.

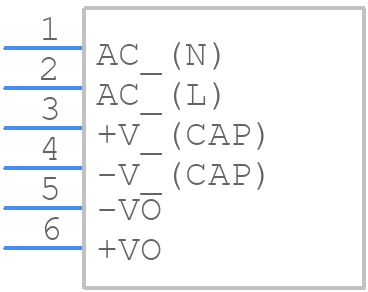

Symbol

click to zoom

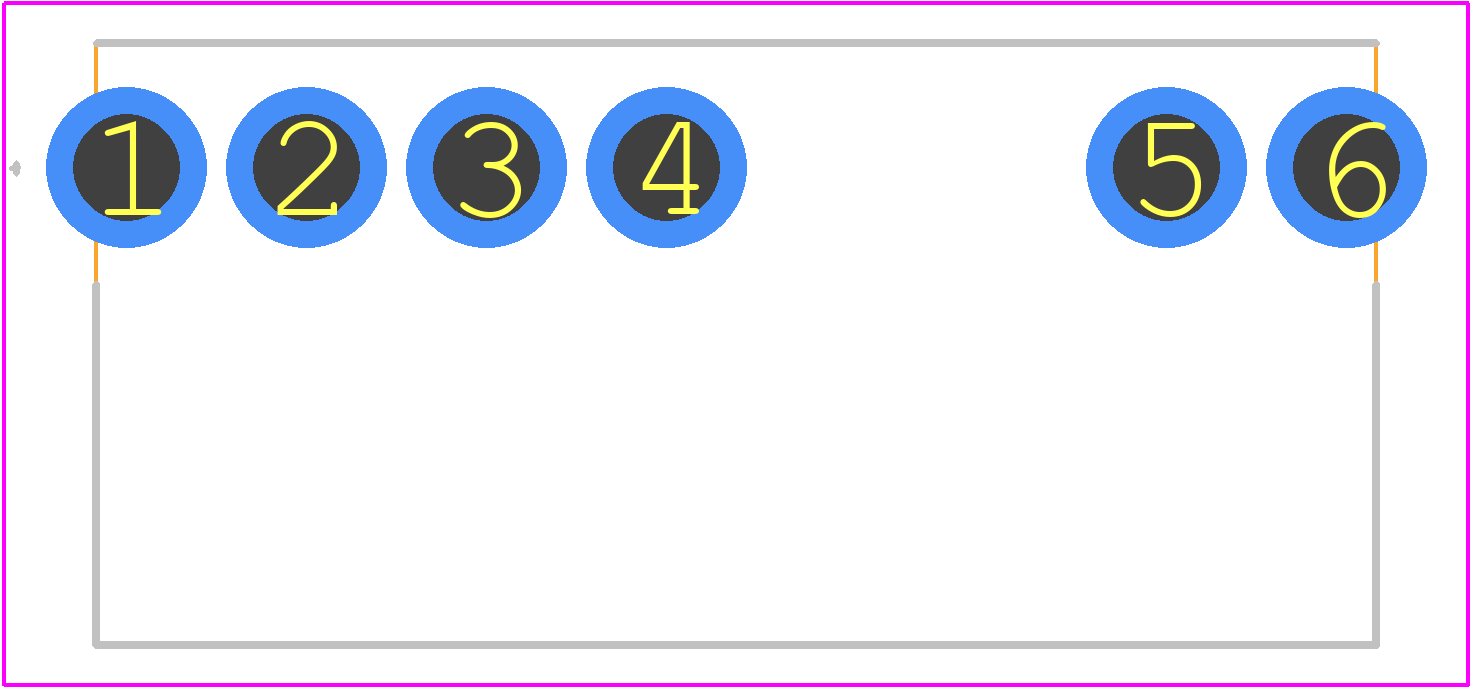

PCB Footprints

PBO-10C-12 - CUI Inc. PCB footprint - Other - Other - PBO-10C-12-1

click to zoom

3D Models

PBO-10C-12 - CUI Inc. - 3D model - Other - PBO-10C-12-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBO-10C-12
Part Number PBO-10C-12
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PBO-10C-12-1
Released Date May 27, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PBO-10C-12 Details

Manufacturer Part Number:
PBO-10C-12
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
ALSO OPERATING WITH 100V TO 430VDC
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
82%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
32 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.83 A
Output Voltage-Max:
12.24 V
Output Voltage-Min:
11.76 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
18.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
15.05 mm

PBO-10C-12 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The PBO-10C-12 has built-in input voltage transient protection, but it's recommended to add external protection components, such as TVS diodes or varistors, to ensure reliable operation in harsh environments.
CUI recommends an output filter capacitor with a maximum capacitance of 10uF to ensure stability and prevent oscillations. Larger capacitance values may require additional stabilization components.
Yes, the PBO-10C-12 can be used in parallel to increase the total output power, but it's essential to ensure proper synchronization and current sharing between the modules to prevent uneven stress and reduced reliability.
The typical efficiency of the PBO-10C-12 varies from 85% to 92% depending on the input voltage and load conditions. Refer to the efficiency curves in the datasheet or contact CUI for more information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PBO-10C-12 Overview

Use the download button to access the PBO-10C-12 schematic symbol, PCB footprint, and 3D model.
