CUI recommends a PCB layout with a large copper area for heat dissipation, and thermal vias to connect the pad to the copper plane. A thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable start-up and shutdown, CUI recommends a soft-start circuit to limit inrush current, and a shutdown circuit to prevent voltage spikes. Additionally, a input undervoltage lockout (UVLO) can be used to prevent the module from operating outside of its specified input range.
CUI recommends a maximum output capacitance of 10uF to prevent oscillation and ensure stability. Exceeding this value may cause the module to oscillate or become unstable.
Yes, the PBO-10C-15 is designed for high-reliability and high-availability applications. It has a built-in overcurrent protection, overvoltage protection, and short-circuit protection. However, it's essential to follow CUI's recommended design guidelines and testing procedures to ensure the module meets the specific application requirements.
CUI recommends checking the input voltage, output load, and PCB layout for any issues. Verify that the module is properly soldered and that there are no signs of physical damage. If the issue persists, contact CUI's technical support for further assistance and troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBO-10C-15 Overview

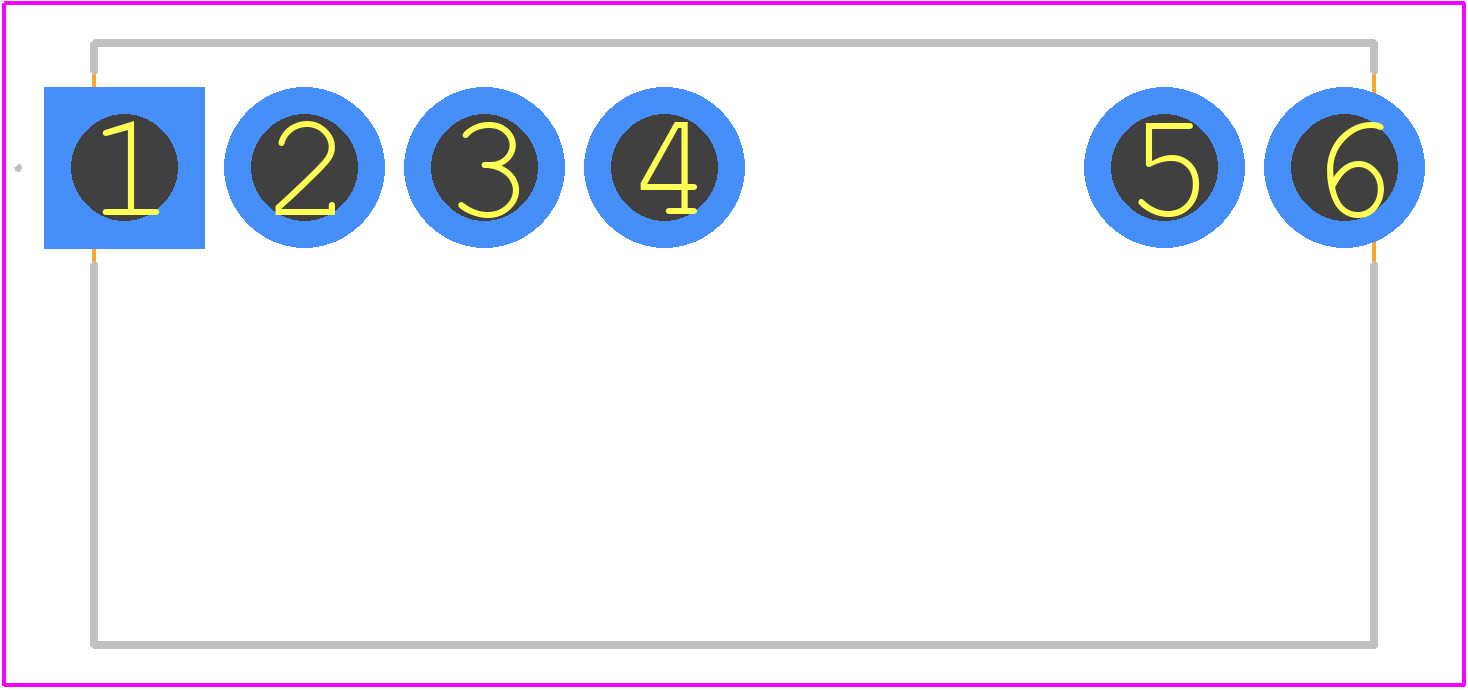

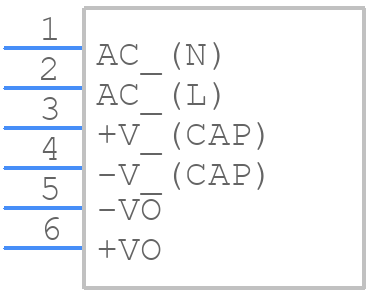

Use the download button to access the PBO-10C-15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-1,
or try a keyword search, such as Power Supply Modules
