CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, ensure a minimum of 1mm clearance around the module to allow for airflow.
CUI recommends following proper EMC design practices, such as using shielding, filtering, and grounding techniques. Ensure the PBO-10C-24 is installed at least 10mm away from other components and use a metal enclosure to reduce EMI radiation.
CUI provides a derating curve in the datasheet, but for more detailed information, contact CUI's technical support. They can provide a custom derating curve based on your specific application and environmental conditions.
Yes, the PBO-10C-24 is designed to withstand vibrations up to 10G peak acceleration. However, ensure the module is properly secured to the PCB and the PCB is securely fastened to the system to prevent damage.
CUI estimates the MTBF of the PBO-10C-24 to be around 1.5 million hours at 25°C ambient temperature, based on MIL-HDBK-217F calculations. However, actual MTBF may vary depending on the application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBO-10C-24 Overview

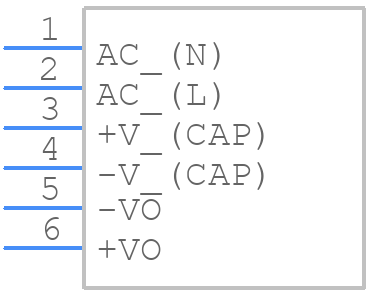

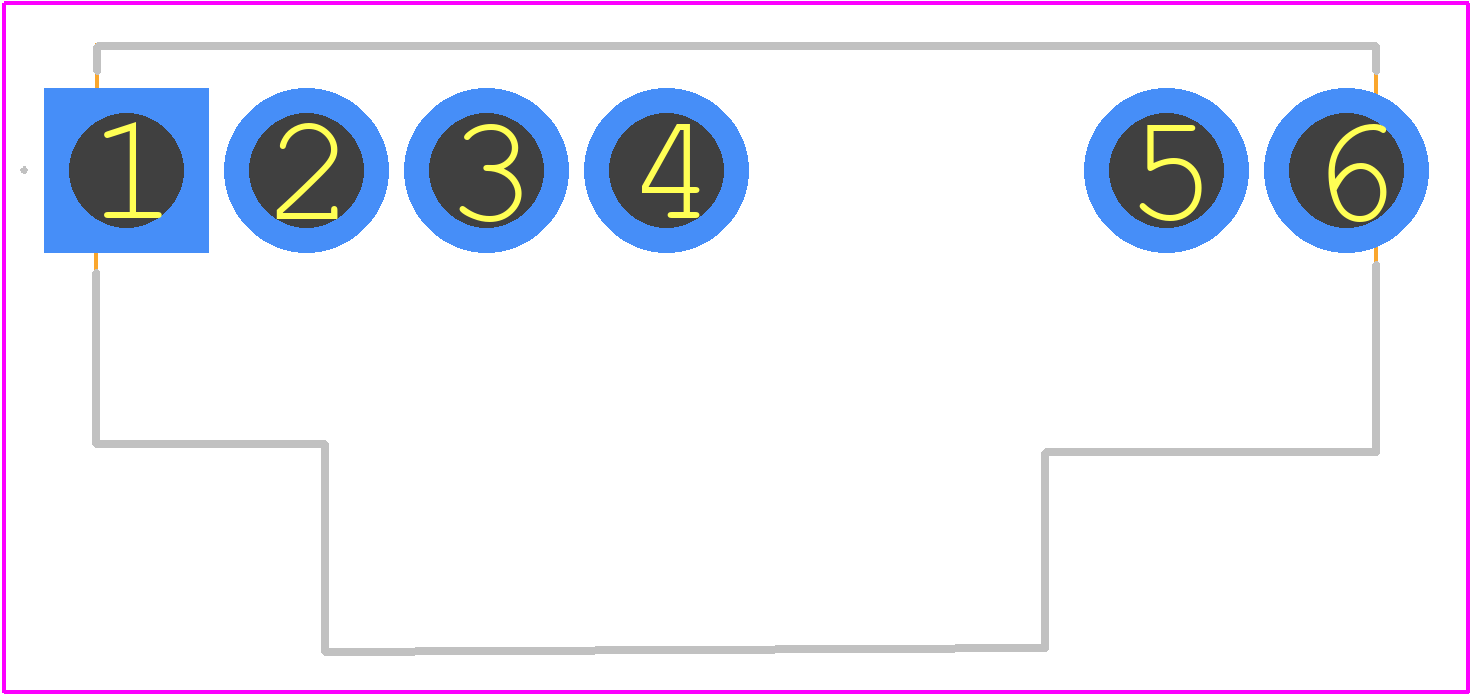

Use the download button to access the PBO-10C-24 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-1,
or try a keyword search, such as Power Supply Modules
