PBO-10C-5 footprint, schematic symbol and 3D model by CUI Inc.

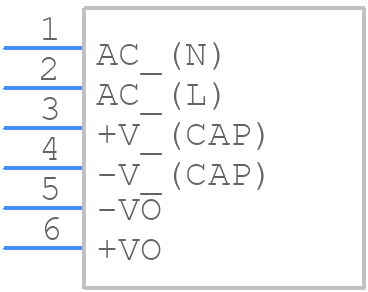

Symbol

click to zoom

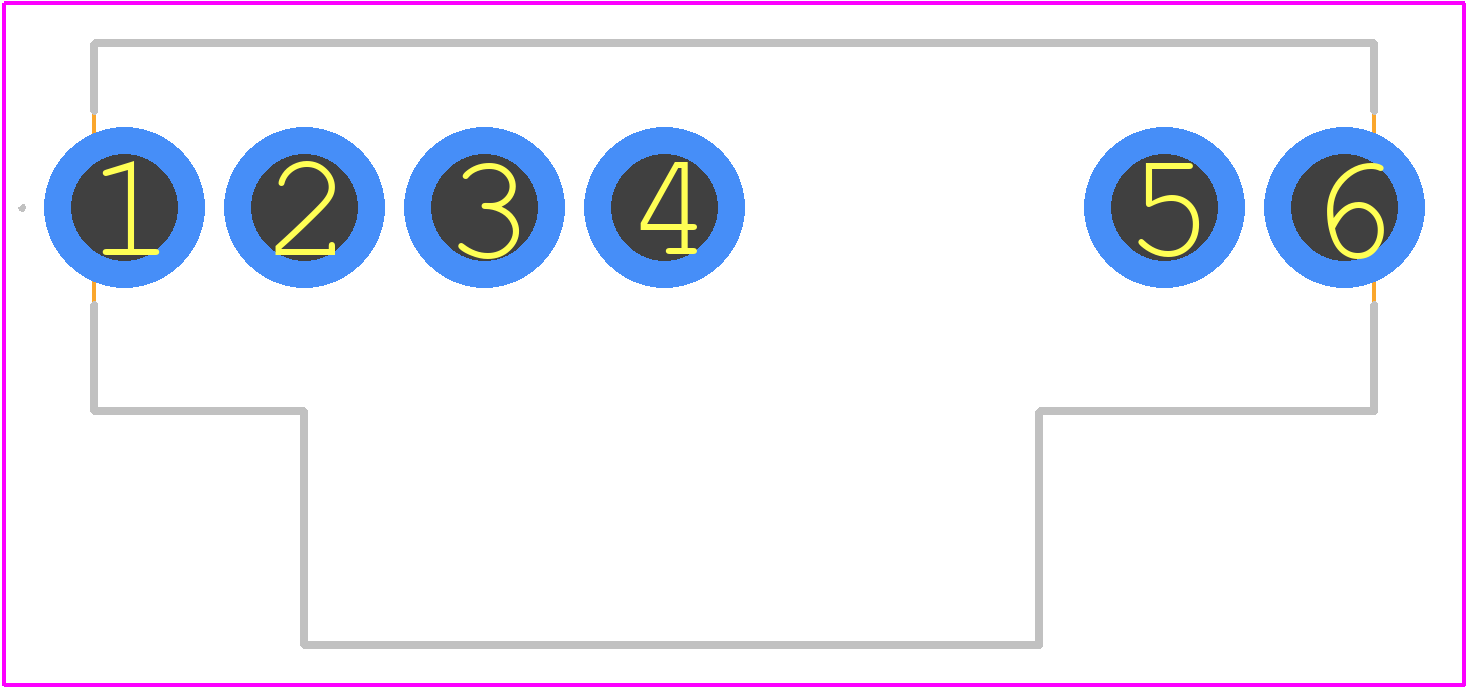

PCB Footprints

PBO-10C-5 - CUI Inc. PCB footprint - Other - Other - PBO-10C-5-2

click to zoom

3D Models

PBO-10C-5 - CUI Inc. - 3D model - Other - PBO-10C-5-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBO-10C-5
Part Number PBO-10C-5
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PBO-10C-5-2
Released Date Mar 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PBO-10C-5 Details

Manufacturer Part Number:
PBO-10C-5
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
ALSO OPERATING WITH 100V TO 430VDC
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
77%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
32 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
18.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Width:
15.05 mm

PBO-10C-5 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. For thermal management, a heat sink or thermal interface material can be used to keep the operating temperature below 125°C.
The PBO-10C-5 has built-in input voltage transient protection up to 300 VAC for 100 ms. However, for prolonged transients or spikes, external protection devices such as TVS diodes or varistors may be necessary to ensure reliable operation.
The maximum recommended cable length for the output connectors is 10 inches (25 cm) to minimize voltage drop and ensure reliable operation. Longer cables may require additional filtering or shielding to prevent EMI issues.
Yes, the PBO-10C-5 can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it's essential to ensure proper synchronization and control of the units to prevent instability or damage.
The MTBF rating for the PBO-10C-5 is approximately 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F. This rating is based on the component's reliability and may vary depending on the application and operating conditions.
