PBO-15C-5 footprint, schematic symbol and 3D model by CUI Inc.

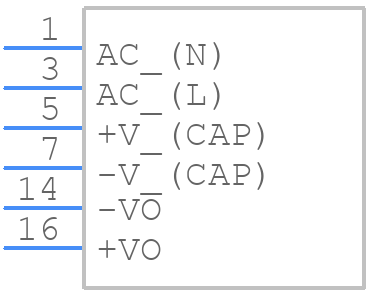

Symbol

click to zoom

PCB Footprints

PBO-15C-5 - CUI Inc. PCB footprint - Other - Other - PBO-15C-5-5

click to zoom

3D Models

PBO-15C-5 - CUI Inc. - 3D model - Other - PBO-15C-5-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBO-15C-5
Part Number PBO-15C-5
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PBO-15C-5-5
Released Date Oct 12, 2022
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PBO-15C-5 Details

Manufacturer Part Number:
PBO-15C-5
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Date Of Intro:
2020-09-20
Manufacturer:
CUI Inc
YTEOL:
3
Additional Feature:
DC INPUT VOLTAGE 100 TO 430 V
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
77%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
44.5 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.8 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
24 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
14 W
Trim/Adjustable Output:
NO

PBO-15C-5 Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The PBO-15C-5 has built-in input voltage transient protection, but it's still recommended to add external transient voltage suppressors (TVS) or metal-oxide varistors (MOVs) to protect against high-energy transients and spikes.
The maximum cable length for the output connectors is 10 inches (25 cm), and CUI recommends using shielded cables with a minimum of 18 AWG wire size to minimize voltage drop and electromagnetic interference (EMI).
The PBO-15C-5 is designed for standard operating conditions, but it can be used in high-altitude applications up to 10,000 feet (3,048 meters) with derating. For high-temperature applications, CUI recommends consulting with their application engineers to determine the suitable operating conditions.
CUI recommends adding external EMI filters or shielding to meet specific electromagnetic compatibility (EMC) requirements, such as CISPR 11 or FCC Part 15. The PBO-15C-5 has a built-in EMI filter, but additional filtering may be necessary depending on the application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PBO-15C-5 Overview

Use the download button to access the PBO-15C-5 schematic symbol, PCB footprint, and 3D model.
