PBSS4140V - Nexperia

Description: NPN Transistor 1A SOT666,PBSS4140V NXP PBSS4140V NPN Low Saturation Bipolar Transistor, 1 A 40 V, 6-Pin SSMini

Download PBSS4140V Model

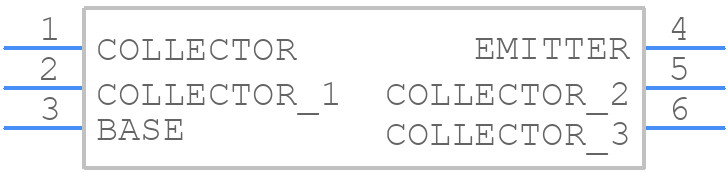

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PBSS4140V - Nexperia PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT666
click to zoom
3D Models
PBSS4140V - Nexperia  - 3D model - SO Transistor Flat Lead - SOT666
click to zoom

PBSS4140V Details

  • Manufacturer Part Number:

    PBSS4140V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMALL OUTLINE, R-PDSO-F6

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    40 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz
