Part Image

PBSS4160DPN,115 - Nexperia

Description: Bipolar Transistors - BJT LO VCESAT(BISS)TRANS,60 V, 1 A NPN/PNP low VCEsat (BISS) transistor,SOT457

Download PBSS4160DPN,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

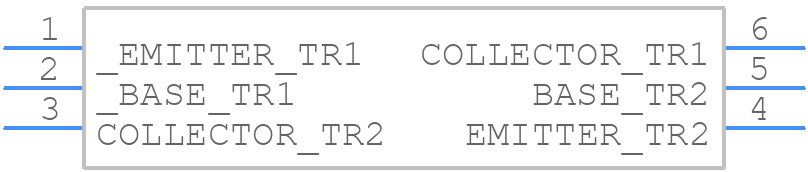

Symbol
PBSS4160DPN,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PBSS4160DPN,115 - Nexperia PCB footprint - Other - Other - PBSS4160DPN,115-2
click to zoom
3D Models
PBSS4160DPN,115 - Nexperia - 3D model - Other - PBSS4160DPN,115-2
click to zoom

PBSS4160DPN,115 Details

  • Manufacturer Part Number:

    PBSS4160DPN,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    SC-74, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    1 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    220 MHz

PBSS4160DPN,115 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for PBSS4160DPN,115 is a DFN2020-6 package with a 2x2 mm body size and 0.5 mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.
  • To ensure reliable operation of PBSS4160DPN,115 in high-temperature environments, follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using thermal design and layout techniques to minimize thermal resistance and ensure adequate heat dissipation.
  • The PBSS4160DPN,115 has built-in ESD protection and latch-up prevention measures. However, it is still recommended to follow proper ESD handling and storage procedures to prevent damage. Additionally, ensure that the device is properly connected to a ground plane and follow the recommended PCB layout guidelines to minimize the risk of latch-up.
  • Yes, the PBSS4160DPN,115 is suitable for high-frequency applications up to 1 GHz. However, it is essential to follow proper PCB design and layout guidelines to minimize parasitic inductance and capacitance. Additionally, consider using simulation tools to optimize the design and ensure signal integrity.
  • To troubleshoot issues with PBSS4160DPN,115, follow a systematic approach to identify the root cause of the problem. Check the device's operating conditions, power supply, and signal integrity. Use oscilloscopes and logic analyzers to debug the issue. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBSS4160DPN,115 Overview

Use the download button to access the PBSS4160DPN,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBSS4, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
